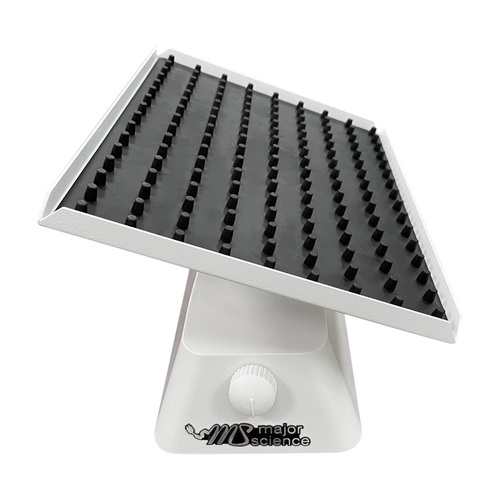

MS-3D-TS | 3D shaker with platforms for tubes, microplates, and Petri dishes

Key Features

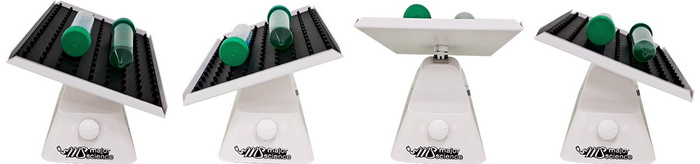

• Delivers a smooth three-dimensional motion that is ideal for shaking tubes, microplates, and Petri dishes
• Two shaking angles: 10º and 20º
• Lightweight with compact footprint
• Operating temperature range allows unit to be used in cold rooms and incubators
• Shaking speed from 0 rpm - 30 rpm
• Loading capacity of up to 2 Kg
• Range of trays and anti-slip mats for different sample formats

Product Description

The MS-3D-TS series of 3D shakers deliver a smooth three-dimensional motion that is ideal for shaking tubes, microplates, and Petri dishes. Shaking speed can be set from  0 rpm - 30 rpm with shaking angle options of 10° or 20º (MS-3D-TS-10: 10º | MS-3D-TS: 20°).

The operating temperature range of these shakers is from -10°C - +60°C which allows them to be used in cold rooms and incubators. They have a loading capacity of up to 2 Kg.

A range of trays and anti-slip mats are available for different sample formats.

Optional Accessories

MS-3D-TS-001	Optional tray with spring and pad
MS-3D-TS-002	Anti-slip mat, rubber, black (supplied with instrument)
MS-3D-TS-003	Optional tray with anti-slip mat, rubber, black
MS-3D-TS-004	Optional tray with anti-slip mat with spring pull cord, black, 2 mm diameter, 350 mm circumference.
MS-3D-TS-005	Optional tray with anti-slip mat with spring pull cord, black, 2 mm diameter, 400 mm circumference.

More Information

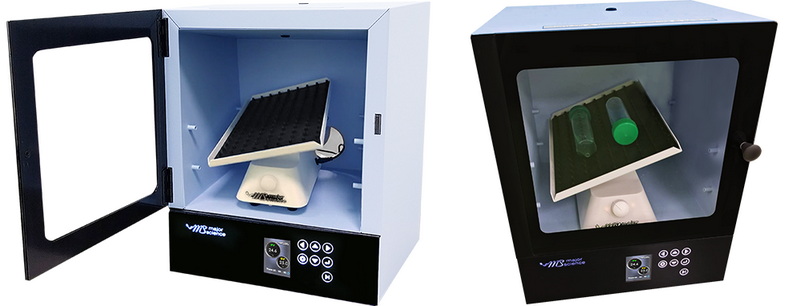

Please click here to watch a video of the MS-3D-TS 3D-dimensional shaker. The shakers are compatible with the 17L MO-MINI laboratory incubator.

Specifications

Manufacturer	Major Science
Model numbers	MS-3D-TS and MS-3D-TS-10
Movement	Three dimensional
Shaking speed	0 rpm - 30 rpm
Speed display	Scale (min/max)
Operation temperature range	-10°C - +60°C
Shaking angle	MS-3D-TS-10: 10º | MS-3D-TS: 20°
Platform size (W x D)	168 mm x 234 mm
Instrument dimensions (W x D x H)	176 mm x 220 mm x 165 mm
Maximum loading capacity	2 Kg
Weight	1.2 Kg
Power	20 W
Electrical requirements	Input 100–240 VAC: 50/60 Hz
