ADAM-MC Plus | Automated fluorescence cell counter (MC Plus)
Key Features
- Auto-focusing and 4X objective lens
- Uses 4 channel disposable slides
- Bright field and 2 fluorescent (Acridine Orange and DAPI)
- Ideal for counting peripheral blood mononuclear cells, cell lines, stem cells, leukocytes, splenocytes, and adipocytes
- Analysis includes total cell counting, cell viability, cell size, and clump/aggregation percentage
- Superb accuracy and reproducibility
- 10 seconds per test
- 15 μL sample loading volume
- 3.2 μL measuring volume
- 13 captured images per channel
Product Description

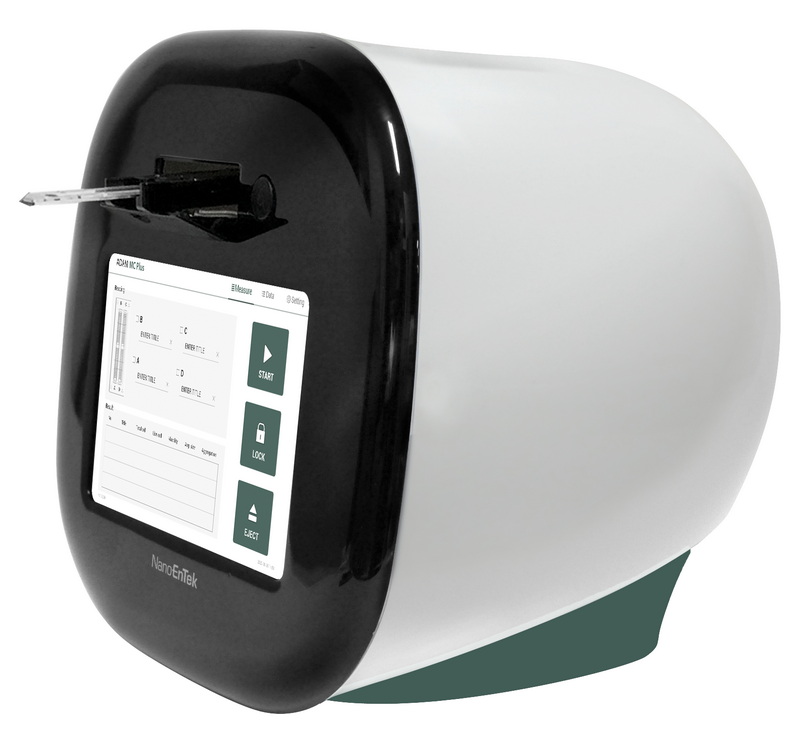

The ADAM™ MC PLUS introduces a new standard in automated fluorescence cell counting. It features brightfield and fluorescence image channels (for Acridine Orange and DAPI) combined with auto-focusing and a 4X objective lens for superb image clarity.
The ADAM™ MC PLUS is ideal for counting peripheral blood mononuclear cells, cell lines, stem cells, leukocytes, splenocytes, and adipocytes. It utilises 4 channel disposable slides and captures 13 images per channel. The unit only needs a 15 μL sample loading volume and a 3.2 μL measuring volume and captures images of a sample in 10 seconds.
Sample analysis includes total cell counting, cell viability, cell size, and clump/aggregation percentage with superb accuracy and reproducibility.
More Information
Please click here to download a brochure describing the ADAM™ MC Plus automated fluorescence cell counter or here to view a video.
Ordering Information
| Catalog Number | Product Description |
| ADAM-MC PIus | Fluorescence cell analyzer |
| APAD-400 | Cell viability reagent | 20 mL x 1 bottle |
| AP4S-100 | AccuPlus Slide | 4 channels | 100 slides |
| APB-001 | Test Beads | 1 mL x 1 tube / pack |
| QCS-002 | QC slide | 1 QC Slide / case |
| Manufacturer | NanoEntek |
| Model number | ADAM™ MC Plus
|
| Channels | Brightfield and two fluorescent channels |
| Staining methods | Acridine Orange and DAPI (4′,6-diamidino-2-phenylindole) |
| Focus | Auto-focusing |
| Objective lens | 4X |
| Measuring range | 5 X 104 ~ 2 X 107 cells/mL (Detectable)
4 X 105 ~ 1 X 106 cells/mL (Optimal) |
| Loading volume | 15 µL |
| Measuring volume | 3.2 µL / test (1 channel) |
| Measuring time | < 40 sec / test (4 channels) |
| Dimensions | 277 mm x 276 mm x 270 mm
|
| Weight | 7 Kg |
