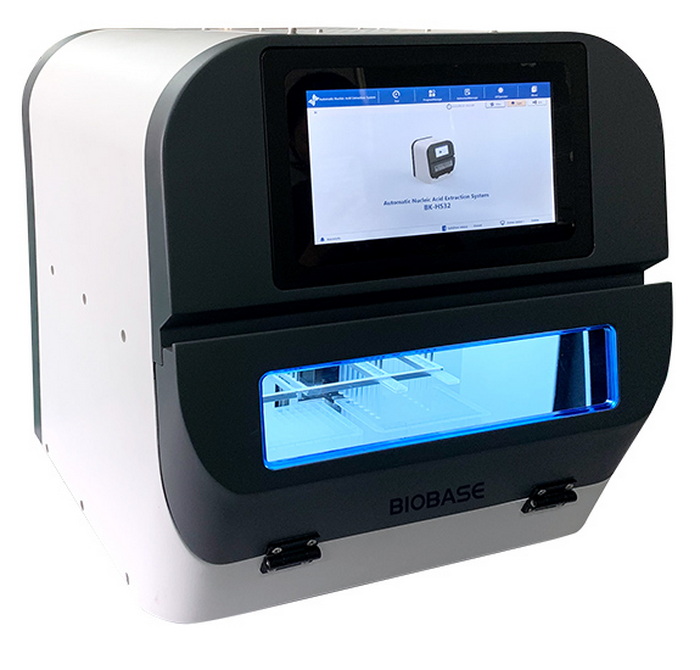

BK-HS32 | Automated nucleic acid extraction system with 32 sample capacity

Key Features

• Uses established and reliable magnetic bead technology
• Highly flexible protocols to meet the requirements of different reagents
• Integrated heating and shaking module to reduce extraction time
• Process up to 32 samples per run
• Processing volume from 20 µL - 1000 µL
• Extraction times from 15 min - 60 min depending on reagents used
• 260 mm intuitive and fast response touch screen | Windows operating system
• Fully automated with no requirement for external control
• Opening the safety door stops the protocol until it is closed
• High efficiency Class II HEPA filter to prevent cross-contamination
• UV disinfection function

Product Description

The BK-HS32 is an advanced nucleic acid extraction system that uses established and reliable magnetic bead technology to extract nucleic acids from up to 32 samples per run. The instrument is fully automated (needs no external computer control) and is operated through a 260 mm intuitive and fast response touch screen and Windows operating system.

The unit has a processing volume from 20 µL - 1000 µL and extraction times can be set from 15 min - 60 min depending upon the reagents used.

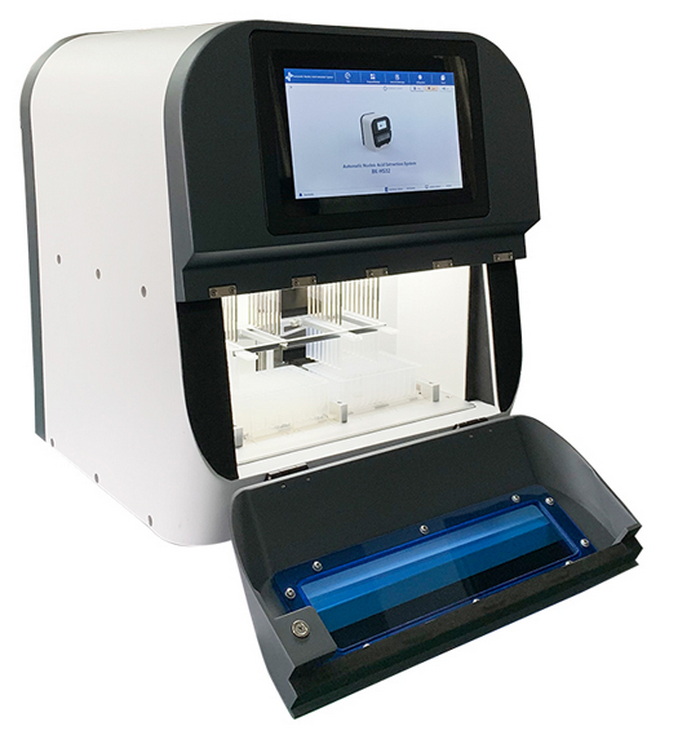

The unit features a safety door which stops the protocol if it is opened mid-run. The protocol will restart when the door is closed. The unit also features a UV disinfection function and a Class II HEPA filter to prevent cross contamination.

The BK-HS32 features a number of other safety functions that include start-up self-checking, power-off protection, high temperature alarm, over-temperature protection and motor protection.

More Information

Please click here to download a brochure describing the BK-HS32 automated nucleic acid extraction system.

Specifications

Model number	BK-HS32
Manufacturer	Biobase
Extraction methods	Magnetic beads
Sample capacity	32
Processing volume	20 µL ~1000 µL
Extraction time	15 min ~ 60 min
Magnetic bead recovery	≥98%
Extraction difference between wells	<3%
Magnetic rod flux	4500 Gauss
Temperature range	Adjustable heating function | RT - 100℃
Oscillating mixing	Vertical mixing | low, medium, high | three gears adjustable
Module station	2
Protection functions	Start up self-checking | power off protection | high temperature alarm | over temperature protection | motor protection
Disinfection method	8W UV lamp
Illuminating lamp	3.4W LED lamp
Operating interface	260 mm capacitative touch screen | Windows operating system
Barcode scanning function	Optional external barcode scanner
Project storage	>1000
Interface	2 USB port | optional LAN port
Contamination control	Class II HEPA filter to filter the internal aerosol and prevent cross contamination
IAP function	Firmware can be updated online at any time
Electrical requirements	100 VAC ~ 240 VAC | 50Hz/60Hz
External dimensions (W x D x H)	460 mm x 470 mm x 480mm
Weight	37 Kg
