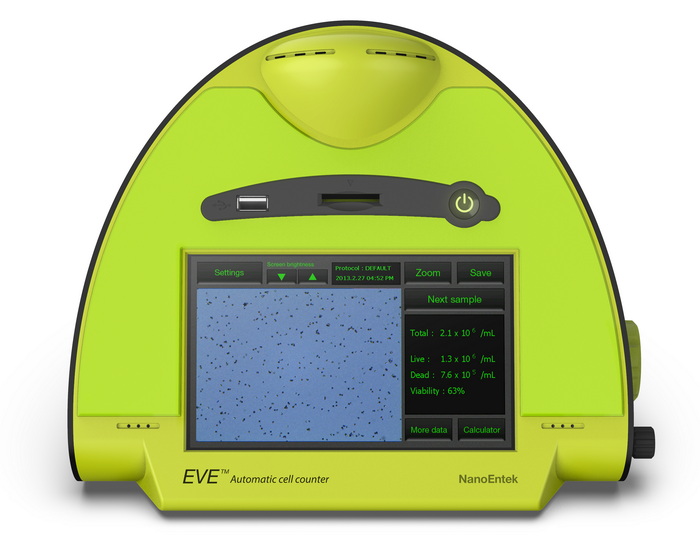

EVE-MC | Automatic cell counting system for brightfield imaging with Trypan Blue (EVE)

Key Features

• Extensive range of cell lines validated (please download a brochure from More Information below for a complete list)
• Uses disposable cell counting slides
• Trypan blue stain used for brightfield imaging to identify dead and damaged cells and separate them from living cells
• Can count single cells and clumpy cells. The Eve™ counting algorithm identifies and counts individual cells within cell clumps for accurate analysis.
• Provides a higher concentration range for cell counting compared to standard haemocytometers
• <20s counting time per sample
• Cell size gating function
• 180 mm LCD touch screen for easy instrument control and data collection
• Store up to 500 test results and transfer data to PC using USB drive. Generate more in-depth analysis with the supplied software.

Product Description

EVE™ uses state-of-the-art optics and image analysis for counting an extensive range of cell lines (please download a brochure from More Information below for a complete list). It can count both single cells and clumpy cells with accuracy and precision and the Eve™ counting algorithm allows counting of individual cells within cell clumps.

The EVE™ automated cell counter utilises Trypan blue which selectively stains dead and damaged cells blue while leaving live cells unstained. It works through a process called dye exclusion which relies on cell membrane integrity to differentiate viability. The unit features a cell size gating function and a <20s counting time for cells ranging in size from 5 µm - 60 µm.

Accessories

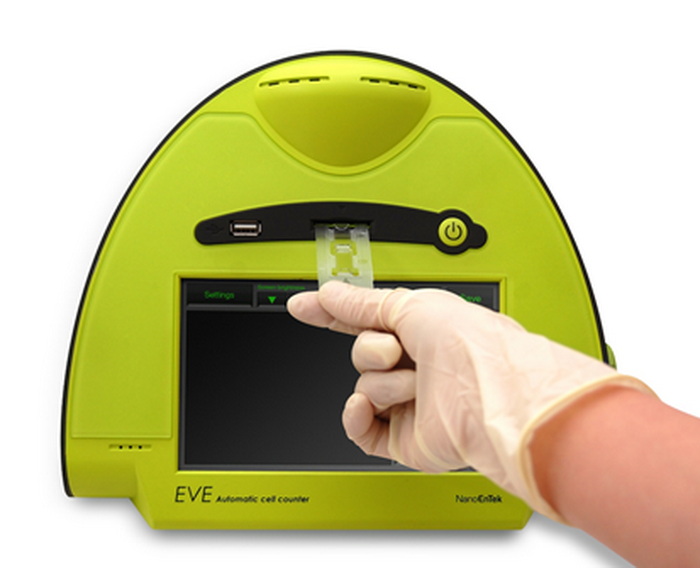

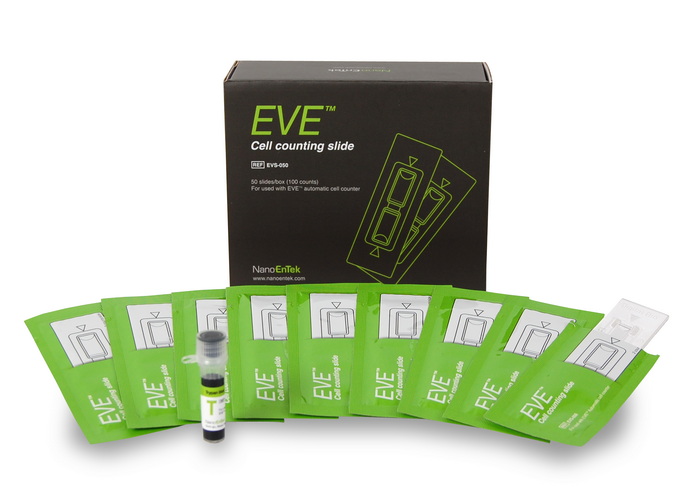

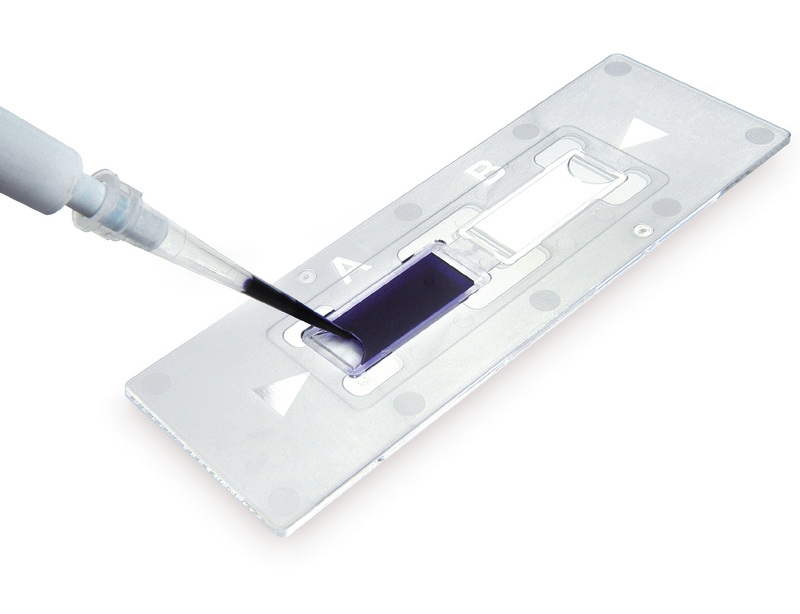

Disposable cell counting slides are used to load cell samples into the EVE™ for counting. Each slide provides two counts.

Catalog Number	Description	Contents
EVS-050	EVE™ cell counting slide	50 slides (100 counts)
EVS-1000	EVE™ cell counting slide	1000 slides (2000 counts)
EVS-5000	EVE™ cell counting slide	5000 slides (10000 counts)
EBB-001	Test beads concentration (average): 1 x 106	1 mL

More Information

Please click here to download a copy of our brochure for the EVE™ automatic cell counter.

Specifications

Model number	EVE
Cell type	Cell line (clumpy cell, single cell)
Cell size range	5 µm - 60 µm
Analysis time	< 20 sec/test
Dyes	Trypan blue stain for brightfield imaging
Loading volume	10 µL
Measuring volume	0.4 µL / test
Measuring range	Detectable range: 1 x 104 - 1 x 107 cells/mL  Optimal range: 1 x 105 - 4 x 106 cells/mL
Focus	Manual focusing
Display	180 mm LCD touch screen
Dimensions	200 mm x 270 mm x 190 mm
Data export	USB drive
Export type	JPEG (image): CSV (raw data)
Weight	2.1 Kg
