EVE-MC2 | Automatic cell counting system for brightfield imaging with Trypan Blue or Erythrosin B staining

Key Features

• <1s counting time per sample with manual focus and <10s counting time per sample with auto focus
• Extensive range of cell lines validated (please download a brochure from More Information below for a complete list)
• Uses disposable cell counting slides
• Trypan blue and Erythrosin B stains used for brightfield imaging to identify dead and damaged cells and separate them from living cells
• Can count single cells and clumpy cells. The Eve™ PLUS counting algorithm identifies and counts individual cells within cell clumps for accurate analysis.
• Provides a higher concentration range for cell counting compared to standard haemocytometers
• Cell size gating function
• Tablet display for easy instrument control and data collection
• Store up to 500 test results and transfer data to PC using USB drive. Generate more in-depth analysis with the supplied software.

Product Description

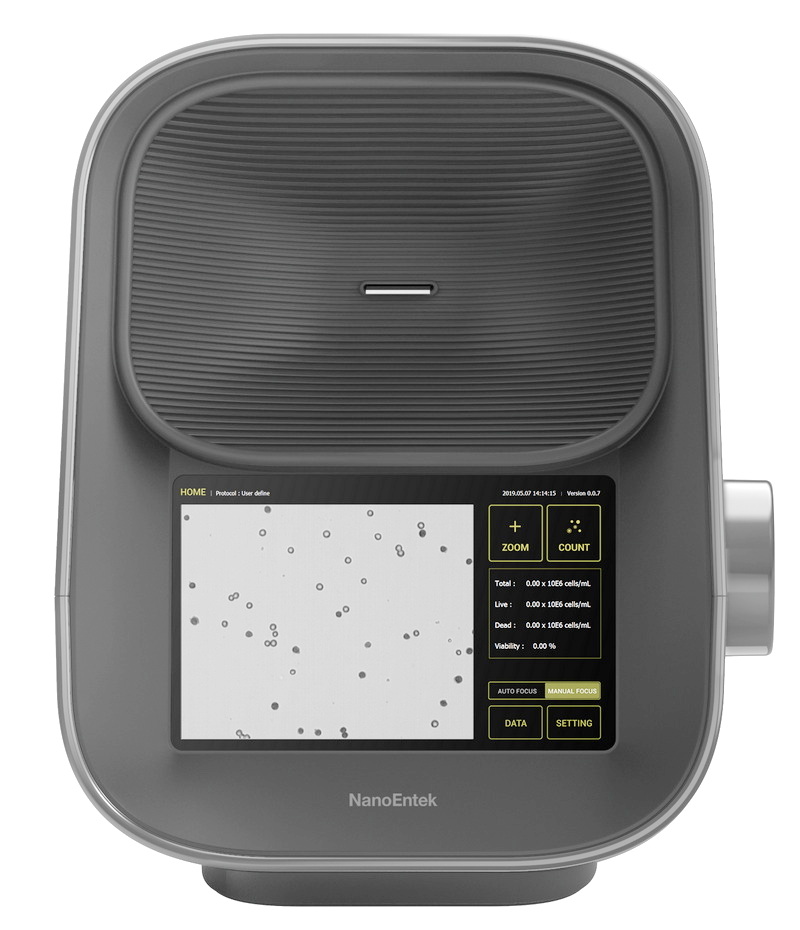

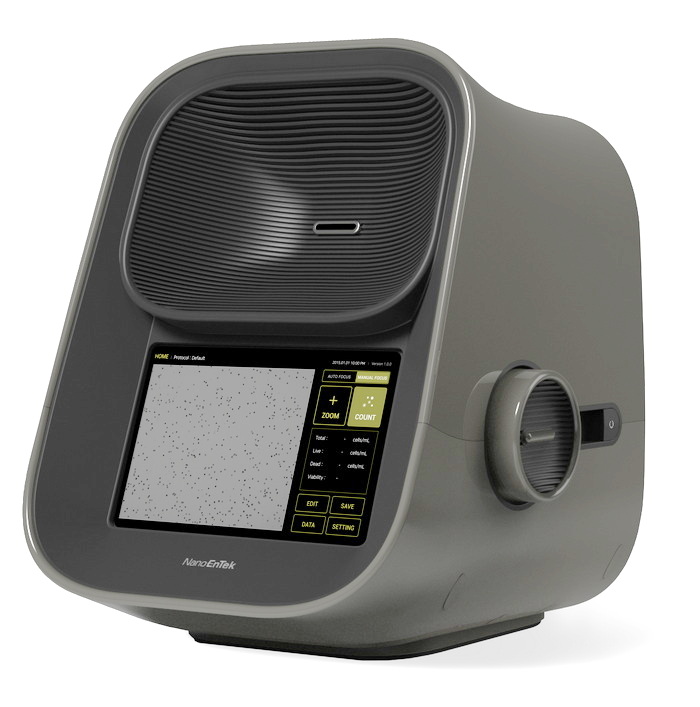

EVE™ PLUS uses state-of-the-art optics and image analysis for counting an extensive range of cell lines (please download a brochure from More Information below for a complete list). It can count both single cells and clumpy cells with accuracy and precision and the Eve™ PLUS counting algorithm allows counting of individual cells within cell clumps.

The EVE™ PLUS utilises Trypan Blue and Erythrosin B dyes that selectively stain dead and damaged cells blue or red while leaving live cells unstained. They work through a process called dye exclusion which relies on cell membrane integrity to differentiate viability. The unit features a cell size gating function and a <1s per sample counting time with manual focus and <10s per sample with auto focus for cells ranging in size from 5 µm - 60 µm.

Accessories

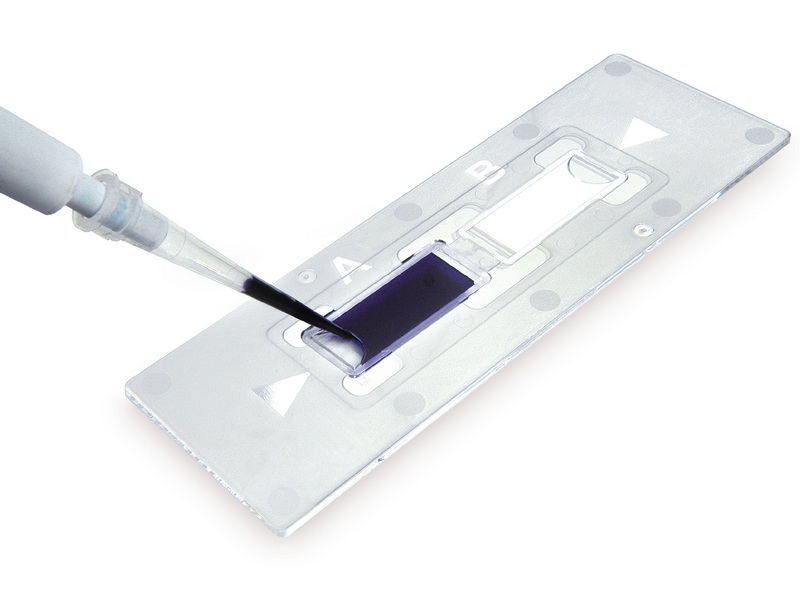

Disposable cell counting slides are used to load cell samples into the EVE™ PLUS for counting. Each slide provides two counts.

Catalog Number	Description	Contents
EVS-050	EVE™ cell counting slide	50 slides (100 counts)
EVS-1000	EVE™ cell counting slide	1000 slides (2000 counts)
EBB-001	Test beads concentration (average): 1 x 106	1 mL

More Information

Please click here to download a copy of our brochure for the EVE™ Plus automatic cell counter.

Specifications

Model number	EVE ™ PLUS
Cell type	Cell line (clumpy cell, single cell)
Cell size range	5 µm - 60 µm
Analysis time	< 1 sec/test (manual focus) < 10 sec/test (auto focus)
Dyes	Trypan blue and Erythrosin B stains for brightfield imaging
Loading volume	10 µL
Measuring volume	0.4 µL / test
Measuring range	1 x 104 -  2 x 107 cells/mL
Focus	Auto or manual focusing
Display	Tablet display
Dimensions	274 mm x 233 mm x 274 mm
Data export	USB drive: WIFI
Export type	JPEG (image): CSV (raw data): PDF
Weight	4 Kg
