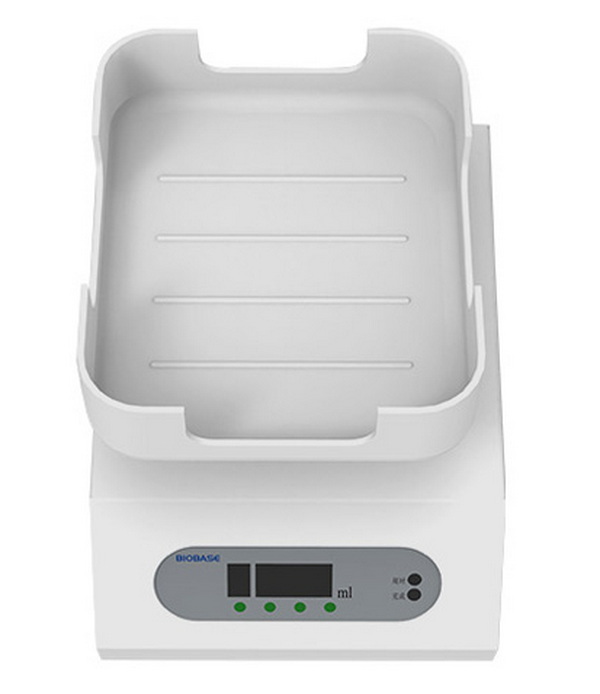

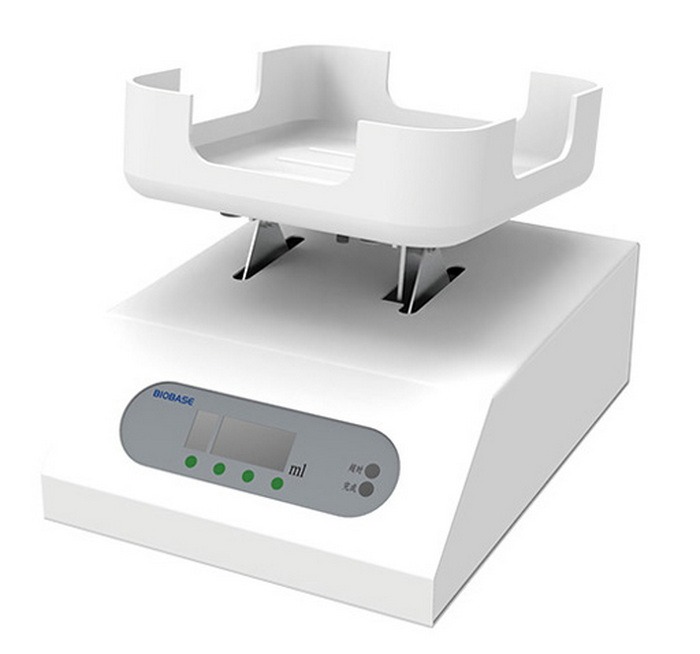

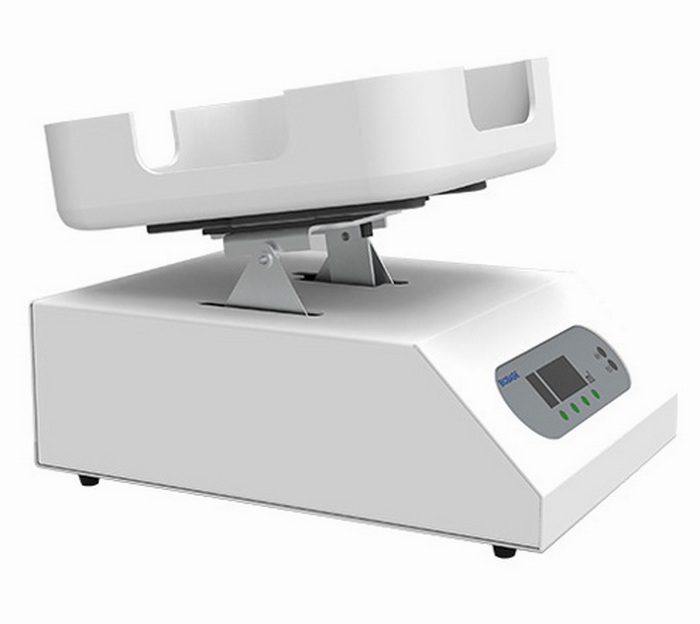

BCM-4 | Portable blood collection monitor with gentle shaking motion | 400 mL capacity

Key Features

• Gentle shaking mode to ensure minimal cellular disruption
• LED display
• Measuring range of 0 - 400 mL
• Built-in lithium battery
• Low noise constant speed motor
• Preset volume function for accurate blood collection
• Automatic audio and visual alarm when pre-set volume is reached
• Taring and calibrating functions to ensure optimum measuring accuracy

Product Description

The BCM-4 blood collection monitor has a measuring range of 0 - 400 mL and a gentle shaking mode to ensure minimal cellular disruption. It features taring and calibrating function to ensure optimum measuring accuracy and a pre-set volume function for accurate blood collection. Automatic audio and visual alarms alert when pre-set volume is reached.

More Information

Please click here to download a brochure for the BCM-4 blood collection monitor.

Specifications

Model number	BCM-4
Measuring range	0 - 400 mL
Display	LED
Resolution	1 mL
Blood weight	1.05 g/mL
Collection speed	0.5 mL - 3 mL/second
Static error	±2 grams
Swing angle	13±2°
Swing rate	30 - 32 rpm
Alarm	Audio and visual collection finish
Battery	Lithium battery | 12V | 5000mAh | 3 hours battery life
Operating temperature range	5°C - 40°C
Power consumption	17 W
Electrical requirements	110~240 VAC | 50/60 Hz
Instrument dimensions (W x D x H)	190 mm x 240 mm x 158 mm
Weight	2.5 Kg
