BHY-2500 | Multi-tube vortex mixer for up to 96 samples

Key Features

• Up to 96 samples can be processed at a time
• Speed range from 500 rpm to 2500 rpm
• 3.6 mm shaking amplitude
• Accelerates uniformly and smoothly to avoid sample splashing
• Selectable working modes of jog, continuous and intermittent pulse
• LED displays for monitoring speed and time
• Memory function at power-off
• Sample tray options (please see below)

Product Description

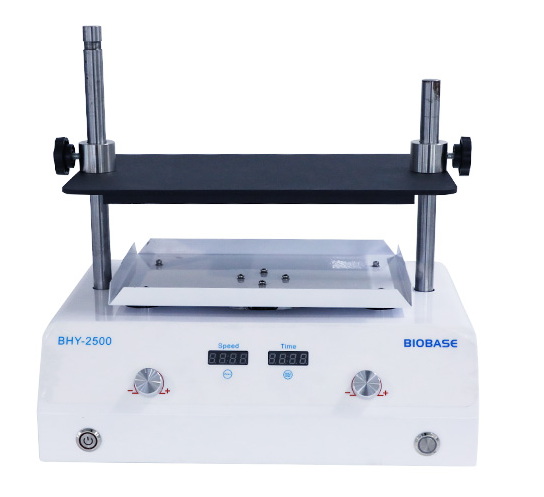

The BHY-2500 is a vortexer that can shake up to 96 sample tubes at a time at up to 2500 rpm. It has a 3.6 mm vortexing amplitude and accelerates uniformly and smoothly to avoid sample splashing.

The BHY-2500 has a number of selectable working modes including jog, continuous, and intermittent pulse, and a memory function to remember operating parameters at power-off.

LED displays allow for monitoring speed and time and the unit has a number of trays for holding different sizes of tubes.

Accessories

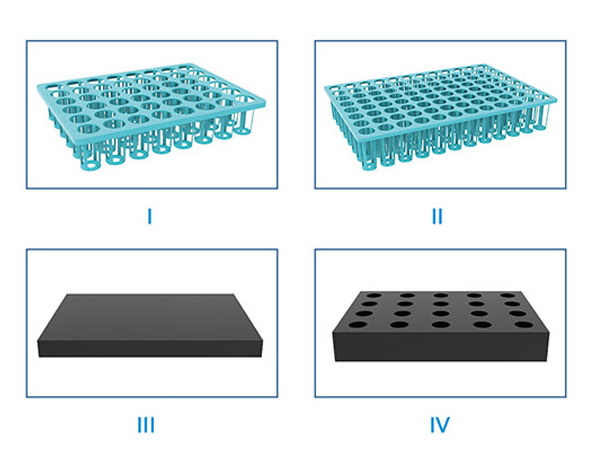

These sample trays are available for the BHY-2500:

Part Number	Description
Tray 1	48-well rack for 20 mL or 30 mL tubes | Dimensions: 272 mm x 205 mm x 50 mm
Tray 2	96-well rack for 7 mL, 10 mL, or 15 mL tubes | Dimensions: 296 mm x 202 mm x 50 mm
Tray 3	Replacement tray pad | 302 mm x 212 mm x 25 mm
Tray 4	Tray for 20 samples of 25 mm - 29 mm diameter tubes. Suitable for 50 mm tubes | Dimensions: 300 mm x 210 mm x 45 mm

Specifications

Model	BHY-2500
Speed range	500 rpm - 2500 rpm
Speed regulation accuracy	±1 rpm
Amplitude	3.6 mm
Time setting range	1s - 99 hours:59 mins
Pulse interval timing range	1s - 99s
Pulse operation timing range	1s - 99 mins:59 seconds
Power	120 W
Electrical requirements	100-230V: 50/60 Hz
Instrument dimensions (W x D x H)	438 mm x 301 mm x 429 mm
Weight	27 Kg
