BK-VX2800 | Multi-tube vortex mixer for up to 96 samples and speed range from 300 rpm - 2800 rpm

Key Features

• Up to 96 samples can be processed at a time
• Speed range from 300 rpm to 2800 rpm
• 3 mm shaking amplitude
• Accelerates uniformly and smoothly to avoid sample splashing
• Selectable working modes of jog, continuous and intermittent pulse
• LED displays for monitoring speed and time
• Memory function at power-off
• Sample tray options (please see below)

Product Description

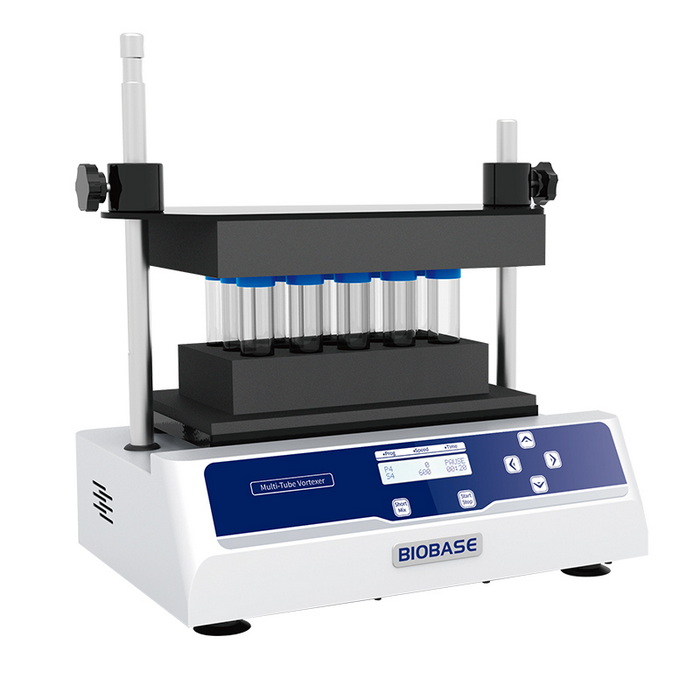

The Biobase BK-VX2800 is a vortexer that can shake up to 96 sample tubes at a time at up to 2800 rpm. It has a 3 mm vortexing amplitude and accelerates uniformly and smoothly to avoid sample splashing.

The BK-VX2800 has a number of selectable working modes including jog, continuous, and intermittent pulse, and a memory function to remember operating parameters at power-off.

LED displays allow for monitoring speed and time and the unit has a number of trays for holding different sizes of tubes.

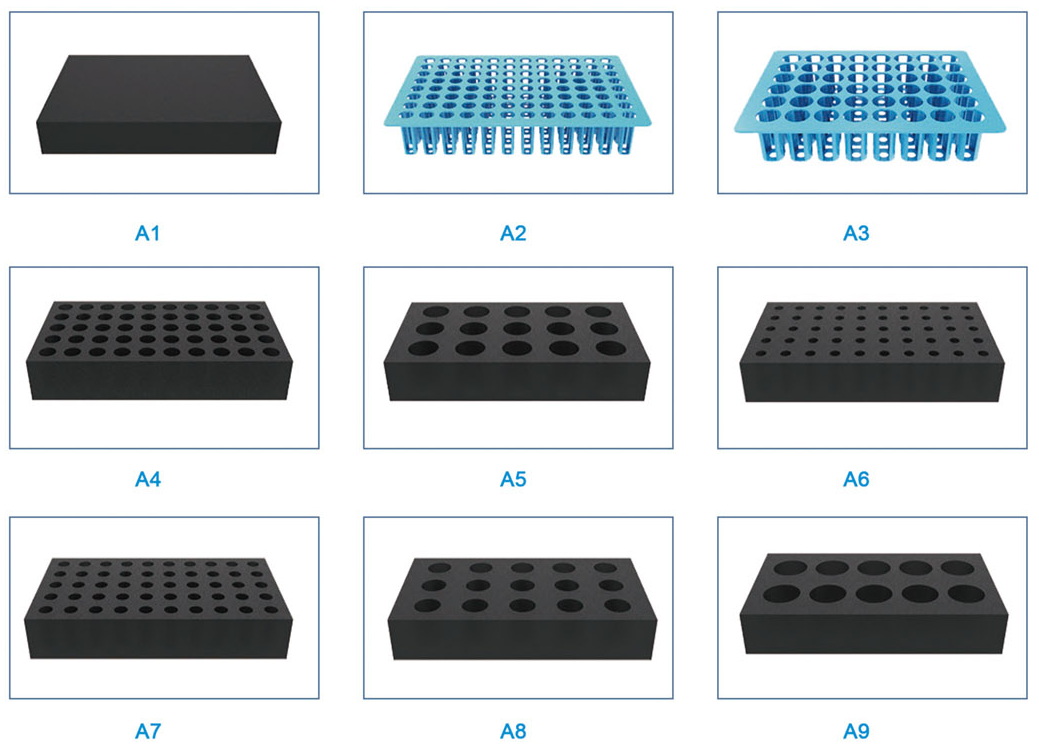

Accessories

These sample trays are available for the BK-VX2800:

Part Number	Description
Standard
A1	Replacement tray pad | 305 mm x 204 mm x 50 mm
A2	Plastic tube rack | hole size (Ø = 17 mm) | 96 holes | 294 mm x 200 mm x 50 mm
A3	Plastic tube rack | hole size (Ø = 26 mm) | 48 holes | 280 mm x 214 mm x 50 mm
A4	Plastic tube rack | hole size (Ø = 16 mm) | 50 holes | 245 mm x 132 mm x 45 mm
A5	Plastic tube rack | hole size (Ø = 29 mm) | 15 holes | 245 mm x 132 mm x 45 mm
Optional
A6	Sponge rack | hole size (Ø = 10 mm) | 50 holes | 245 mm x 132 mm x 45 mm
A7	Sponge rack | hole size (Ø = 13 mm) | 50 holes | 245 mm x 132 mm x 45 mm
A8	Sponge rack | hole size (Ø = 13 mm) | 15 holes | 245 mm x 132 mm x 45 mm
A9	Sponge rack | hole size (Ø = 13 mm) | 10 holes |245 mm x 132 mm x 45 mm

Specifications

Model	BK-VX2800
Speed range	300 rpm - 2800 rpm
Speed regulation accuracy	±1%
Amplitude	3 mm
Time setting range	1s - 99 hours:59 mins
Pulse interval timing range	1s - 99 seconds
Pulse operation timing range	1s - 999 seconds
Maximum loading	5.5 Kg
Power	70 W
Electrical requirements	100-240V: 50/60 Hz
Top cover size	310 mm x 210 mm
Instrument dimensions (W x D x H)	420 mm x 305 mm x 465 mm
Weight	23 Kg
