BK-T100-BF | Dispensing peristaltic pump with variable speed range and flow rate

Key Features

• Flow rate range from 0.16 µL/min - 500 mL/min depending upon tubing diameter
• Polysulfone open and lock pump head
• Variable speed range
• Reversible for purging purposes
• LCD display
• End-user calibration
• Compatible with a wide range of silicon tubing diameters
• Automated storage of pump parameters
• Back-suction function to prevent dripping

Product Description

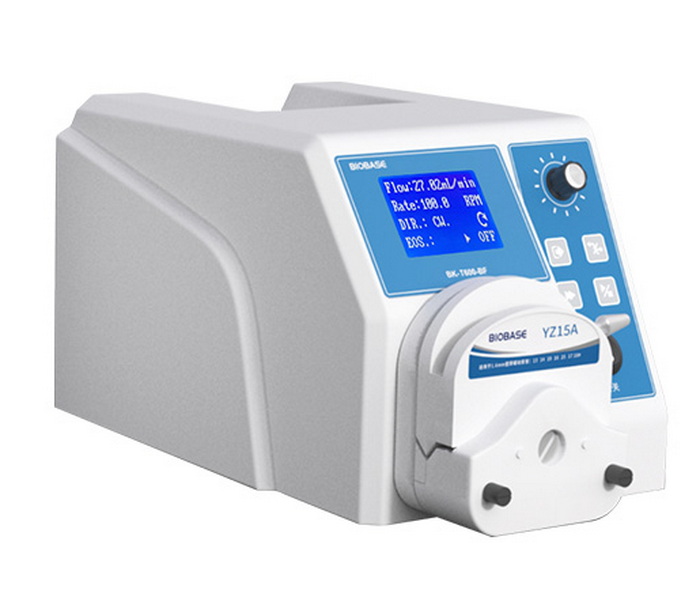

The compact BK-T100-BF peristaltic pump features an LCD display and a Polysulfone open and lock pump head. It has a flow rate range from 0.16 µL/min - 500 mL/min (depending upon tubing diameter) and a variable speed range from 0.1 rpm - 100 rpm.

The BK-T100-BF can be used in reverse mode for purging purposes and has a back-suction function to prevent dripping. Pump parameters are automatically stored and the pump can be linked to an external computer.

Certain functions of the pump can be calibrated by the end-user and the pump is compatible with a wide range of silicon tubing diameters.

Specifications

Pump head	YZ15A | Open and lock construction | Polysulfone
Speed range	0.1 rpm - 100 rpm
Speed resolution	0.1 rpm
Flow range	0.16 µL/min - 500 mL/min
Dispensed fluid volume	0.01 mL - 9.99 L
Dispensed number	0-9999
Operating time range	0.1 s - 99.9 mins.
Suction back time	0 - 99.9 s
Operating temperature range	0°C - 40°C
Ambient humidity	<80%
Protection class	IP31
Suitable tubing	#13, #14, #16, #17, #18, #19 and #25
Interface	RS485
Power	<40W
Electrical requirements	90 VAC - 264 VAC ±10% | 50/60 HZ
Instrument dimensions (W x D x H)	257 mm x 171 mm x 189 mm
Weight	4.2 Kg
