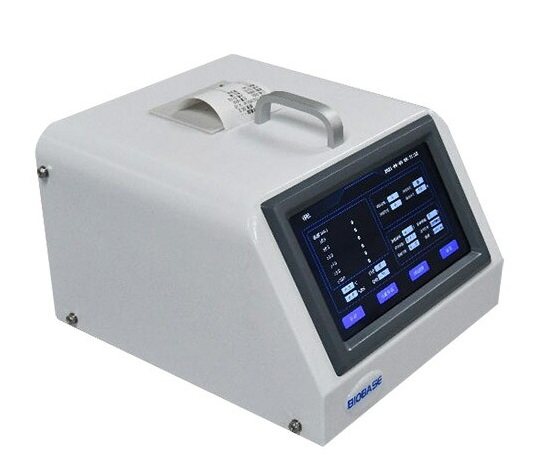

CLJ-2083 | Dust particle counter with touch screen control and six particle size channels

Key Features

• Ideal for a wide range of applications in medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace and many other areas
• Six particle size channels: 0.3μm, 0.5 μm, 1 μm, 3 μm, 5 μm, 10 μm
• 7-inch touch screen control with intuitive interface for convenient operation. Displays particle concentration and purification level.
• Semiconductor laser light source and semiconductor photosensitive receiver tube
• Built-in thermal printer
• Data can be displayed in cubic meters or cubic feet
• Cold-rolled steel outer casing with anti-rust treatment and electrostatic spraying
• Data storage management and 4GB data storage card

Product Description

The CLJ-2083 laser dust particle counter is ideal for applications in medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace and other areas. It utilises a semiconductor laser light source and semiconductor photosensitive receiver tube for particle measurements. It has six particle size channels: 0.3μm, 0.5 μm, 1 μm, 3 μm, 5 μm, 10 μm.

The CLJ-2083 features a 7-inch touch screen with intuitive interface for convenient operation. It has a cold-rolled steel outer casing with anti-rust treatment and electrostatic spraying. The unit has a built-in thermal printer and a 4GB data storage card.

Specifications

Model number	CLJ-2083
Sampling volume	2.83 L/min | 0.1 cfm/min
Ambient temperature range	10°C - 35°C
Ambient relative humidity	≤75%
Particle size channels	0.3μm, 0.5 μm, 1 μm, 3 μm, 5 μm, 10 μm
Vacuum source	Built-in air pump under control flow
Light source	Semiconductor laser | ~30,000 hours lifetime
Zero count	Less than 10 min.
Communication interface	USB
Cleanliness level range	ISO 5 - ISO 9
Many body material	Cold-rolled steel
Dimensions	220 mm x 280 mm x 185 mm
Weight	11 Kg
Power	100 W
Electrical requirements	220 V | 50/60 Hz
