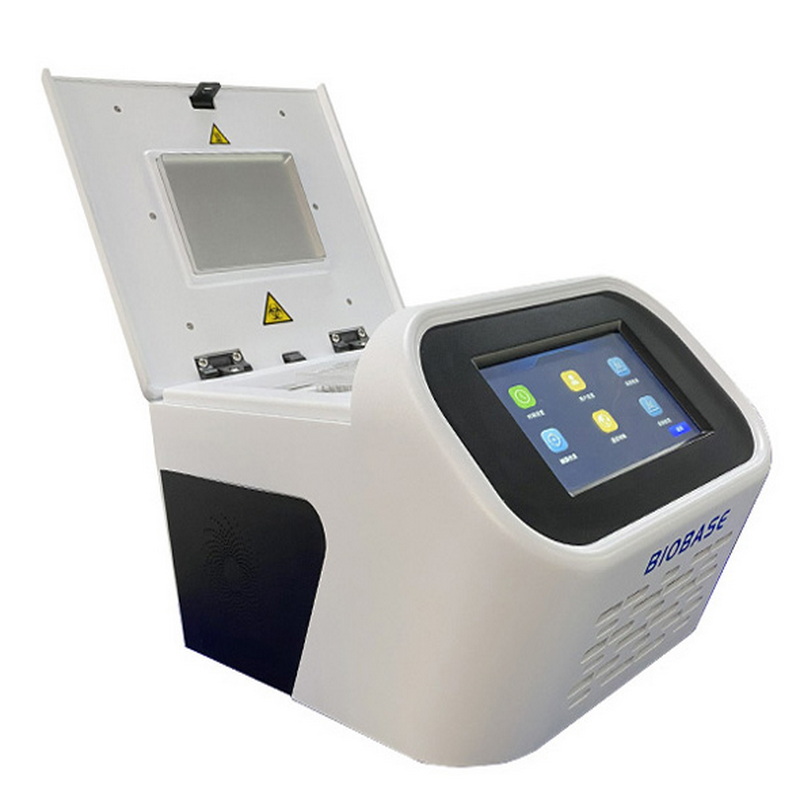

TEC01 | Standard thermal cycler with gradient capability for 96-well 0.2 mL PCR plates or PCR tubes

Key Features

• Rapid heating and cooling rates
• Block temperature range from 4°C ~ 105°C
• Gradient range from 30°C ~ 99°C
• Reaction volume from 10 µL ~ 200 µL
• Aluminium block with 96 x 0.2 mL sample wells
• Excellent temperature uniformity across sample block
• High performance digital signal processor for precise temperature control
• Large capacity program storage. Program can be up to 30 steps with 99 cycles
• 180 mm LCD touch panel

Product Description

The TEC01 standard thermal cycler with gradient capability features rapid heating and cooling ramp rates and a high performance digital signal processor for precise temperature control. Its aluminium block has 96 x 0.2 mL sample wells for reaction volumes from 10 µL ~ 200 µL and provides superb temperature uniformity across the sample block.

The TEC01 offers a block temperature range from 4°C ~ 105°C, a gradient range from 30°C ~ 99°C, and a temperature differential range from 1°C to 42°C.

The TEC01 has large storage capacity for programs with up to 30 steps and 99 cycles. An intuitive 80 mm LCD touch panel allows for complete instrument control.

Specifications

Model number	TEC01
Configuration	96 sample wells
Reaction volume	10 µL ~ 200 µL
Tube types	96 x 0.2 mL PCR plate or 0.2 mL PCR microcentrifuge tubes
Block temperature range	4°C ~ 105°C
Heated lid temperature range	30° ~ 110°C | Lid closed automatically if set temperature is below 30°C
Display resolution	±0.1°C
Temperature accuracy	≤0.5°C
Temperature uniformity	≤1°C
Block material	Aluminium
Gradient range	30°C ~ 99°C
Temperature differential range	1°C ~ 42°C
Programmability	30 steps and 99 cycles
Display	180 mm LCD
Power supply	110V~220V |50/60Hz
External dimensions (W x D x H)	280 mm x 398 mm x 257 mm
Net weight	11 Kg
