BS-010219-A04 | Combined centrifuge and vortexer for 96- and 384-well PCR plates (CVP-2)

Key Features

• Combined centrifuge and vortexer designed for two 96- or 384-well PCR plates
• Centrifuge speed range from 300 rpm - 1500 rpm
• Vortexing speed range from 300 rpm - 1200 rpm
• Timers for centrifuge and vortexer
• Adapters for full range of PCR plate formats


Description

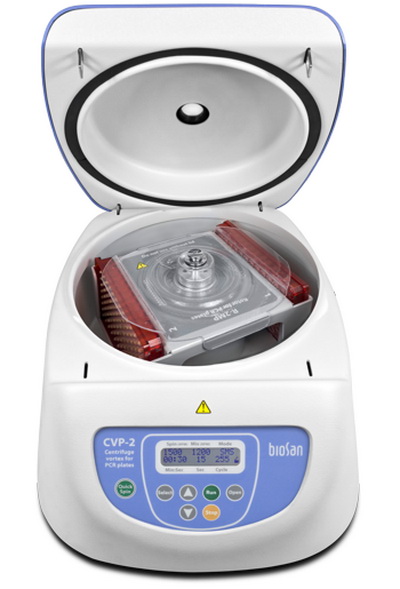

The Biosan CVP-2 from Biosan is a combination of centrifuge and vortexer that is ideal for 96- and 384-well PCR plates. The CVP-2 is compatible with non-skirted, semi-skirted and fully-skirted PCR plate formats. The unit has a top centrifuging speed of 1500 rpm and features timers for both centrifuging and vortexing modes.

96-well skirted PCR plates, and PCR strips in a frame, can be spun without adapters and other 96-well plate formats and 384-well PCR plates can be spun with the adapters listed below. The AP-96 adapter is included with the purchase of the CVP-2. The adapters are manufactured from Ertacetal® and are autoclavable.

Optional Accessories

Part Number	Description
AP-96	Adapter for 96-well semi-skirted and non-skirted PCR plates
AP-384	Adapter for 384-well PCR plates

Specifications

Manufacturer	Biosan
Model number	CVP-2
Display	2 x 16 LCD
Centrifuge speed range	300 rpm - 1500 rpm
Minimum RCF at 1500 rpm	175 x g
Centrifuge timer	0 - 30 minutes (1 second increments to 1 minute and 1 minute intervals to 30 minutes)
Vortex speed range	300 rpm - 1200 rpm in 100 rpm increments
Vortex timer	0 seconds - 60 seconds in 1 second increments
Chamber diameter	210 mm
Instrument dimensions (W x D x H)	285 mm x 350 mm x 190 mm
Weight	6.15 Kg
External power supply	Input: 240 VAC/ 50 Hz | Output: 12 VDC
