BS-050108 | 96 well microplate photometer for endpoint, kinetic and multiplex measurements (HiPo MPP-96)
Key Features
- Optimised for ELISA and microbiological studies in 96 well microplates or strip-well plates
- Ideal for endpoint, kinetic and multiplex measurements. Up to 7 assays can be run on one microplate.
- Absorbance detection mode
- 8 silicon photodiode detectors
- Self-calibrating LED light sources
- 8-position filter wheel with four standard emission filters. Other filter options available (please see below).
- Full computer control with QuantAssay acquisition and analysis software
- Compatible with IDEXX xChekPlus™ software
Description

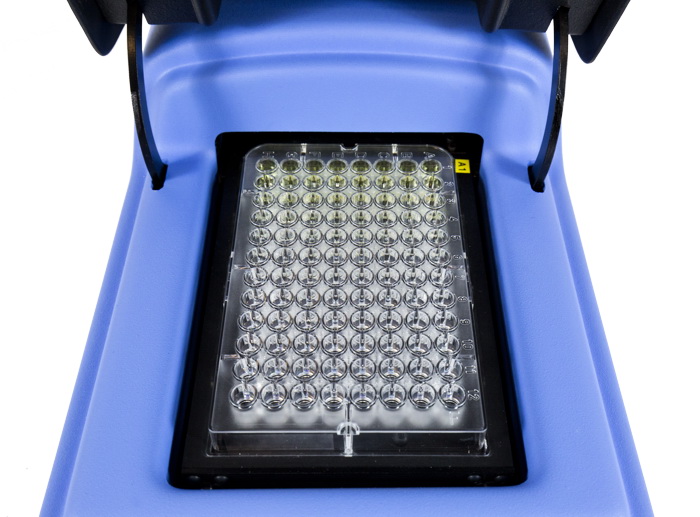

The Biosan HiPo MPP-96 microplate photometer uses photodiode detectors and self-calibrating LED light sources to allow endpoint, kinetic and multiplex measurements to be made from samples in standard 96 well microplates or strip-well plates. The instrument has an 8-poistion filter and is supplied with four standard filters with a wide range of optional filters also available (please see below).
The HiPo MPP-96 is fully computer-controlled and is supplied with the QuantAssay acquisition and analysis software. Key capabilities of the QuantAssay software include:
- ELISA assays of any complexity can be carried out using the Assay Editor and Assay Wizzard
- Quantitative assay includes up to 20 standards
- Avidity/Affinity assays
- Multiplex assays with up to 7 assays on one plate
- Qualitative assay includes up to 11 controls
- BestFit function for selecting the best calibration curve
- User friendly interface
- Save, load and export results
- Create visual reports
The instrument is also compatible with the IDEXX xChekPlus™ software.
Optional Filters
The following optional emission filters are available for the HiPo MPP-96:
| Part Number | Item Description |
| 400 | 400 nm emission filter |
| 455 | 455 nm emission filter |
| 458 | 458 nm emission filter |
| 460 | 460 nm emission filter |
| 470 | 470 nm emission filter |
| 480 | 480 nm emission filter |
| 486 | 486 nm emission filter |
| 488 | 488 nm emission filter |
| 500 | 500 nm emission filter |
| 508 | 508 nm emission filter |
| 510 | 510 nm emission filter |
| 515 | 515 nm emission filter |
| 520 | 520 nm emission filter |
| 532 | 532 nm emission filter |
| 535 | 535 nm emission filter |
| 540 | 540 nm emission filter |
| 546 | 546 nm emission filter |
| 550 | 550 nm emission filter |
| 560 | 560 nm emission filter |
| 568 | 568 nm emission filter |
| 580 | 580 nm emission filter |
| 589 | 589 nm emission filter |
| 594 | 594 nm emission filter |
| 600 | 600 nm emission filter |
| 610 | 610 nm emission filter |
| 632 | 632 nm emission filter |
| 636 | 636 nm emission filter |
| 640 | 640 nm emission filter |
| 647 | 647 nm emission filter |
| 650 | 650 nm emission filter |
| 656 | 656 nm emission filter |
| 660 | 660 nm emission filter |
| 671 | 671 nm emission filter |
| 676 | 676 nm emission filter |
| 680 | 680 nm emission filter |
| 685 | 685 nm emission filter |
| 690 | 690 nm emission filter |
| 694 | 694 nm emission filter |
Specifications
| Detection mode | Absorbance
|
| Light source | Self-calibrating LEDs
|
| Photodetector | 8 silicon photodiodes
|
| Compatible plate type | Standard 96-well microplates and strip-well microplates |
| Reading speed | 5-8 seconds per wavelength
|
| Measurement modes | Endpoint, kinetic and multi-label measurements
|
| Measurement channels | 8 |
| Reference channel | 1 |
| Measurement range | 0 – 4.3 OD (with standard preinstalled filters 0-3.5 OD)
|
| Resolution | 0.0001 OD
|
| Accuracy (405 nm, 450 nm, 492 nm and 620 nm) | 0.000 - 2.000 OD: ≤0.5% ±0.010 OD
2.000 - 3.000 OD: ≤1.0% ±0.010 OD |
| Precision/ reproducibility (405 nm, 450 nm, 492 nm and 620 nm) | 0.000 - 2.000 OD: ≤0.5% ±0.005 OD 2.000 - 3.000 OD: ≤1.0% ±0.005 OD |
| Wavelength range | 400 – 700 nm
|
| Wavelength selection | 8-position filter wheel with four standard filters (405 nm, 450 nm, 492 nm and 620 nm). Additional filters available (please see above). |
| Shaking speed/ control range | 4 amplitudes, 4 speeds
|
| Software | Supplied with QuantAssay control and analysis software. Compatible with IDEXX xChekPlus software. |
| PC system requirements | Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/10, USB
|
| Dimensions (W x D x H) | 140 mm х 300 mm х 130 mm
|
| Weight | 4.6 Kg |
| External power supply | Input: 100 - 240 VAC: 50/60 Hz | Output: 12 VDC |
