BS-010171-A03 | Shaker and heater/ cooler for microcentrifuge tubes and PCR plates with integrated Bluetooth control of up to 7 instruments (TS-100C Smart)

Features

• Integrated software control of up to 7 instruments by PC via Bluetooth
• Temperature control range from 15ºC below ambient to 100°C
• Independent control of speed and temperature
• 2 mm orbital
• LCD display shows set and actual temperature as well as speed and time
• Can be used in individual mode for heating, cooling or shaking or the heating or cooling can be combined with shaking in dual mode
• Shaking speed range from 250 rpm to 1,400 rpm
• Temperature calibration function
• Timer sound signal

Description

The compact TS-100C Smart thermo shaker is the ideal solution for shaking samples in microcentrifuge tubes or PCR plates. The TS-100C Smart can be used as a heater, cooler or shaker in individual mode or the heating or cooling can be combined with shaking in dual mode. Temperature, speed and time are all microprocessor-controlled.

The TS-100C Smart has a 2 mm orbital and shaking speed can be varied between 250 and 1,400 rpm. Temperature can be regulated from 15°C below ambient to +100°C. A temperature calibration function allows the end-user to calibrate the TS-100C Smart by approximately ±6% of the selected temperature to compensate for differences in the thermal behaviour of tubes from different manufacturers.

A unique feature of the TS-100C Smart system is that up to seven instruments can be integrated via Bluetooth by a PC. The novel software supplied with the instrument provides the following capabilities:

• Monitor rotation speed, temperature and time for all instruments in the network
• Generate timer sound signals for each unit
• Create profiling programmes using controlled parameters
• Generate graphs of temperature vs time and speed vs time
• Export data to Excel or in CSV format
• Provide error messages and fault diagnostics

A complete system includes the thermo shaker base unit(s) and one of the five different easily-interchangeable blocks that are available for the TS-100C Smart. Blocks are sold separately from the thermal shaker base unit. Software for integrated control of up to seven units is also included.

Ordering Information

Part Number	Item Description
BS-010171-A03	Thermo Shaker base unit

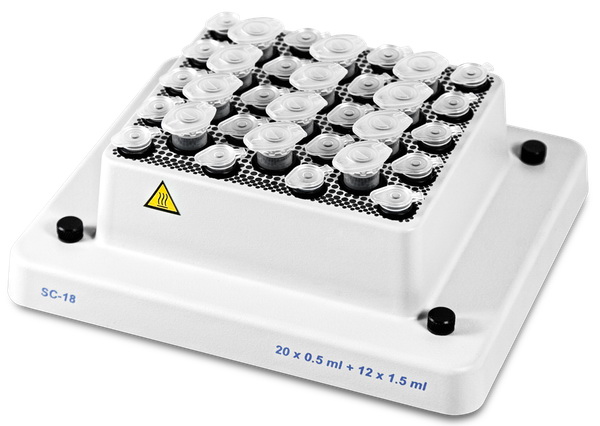

BS-010143-AK	SC-18C | Block for 20 x 0.5 mL and 12 x 1.5 mL microcentrifuge tubes

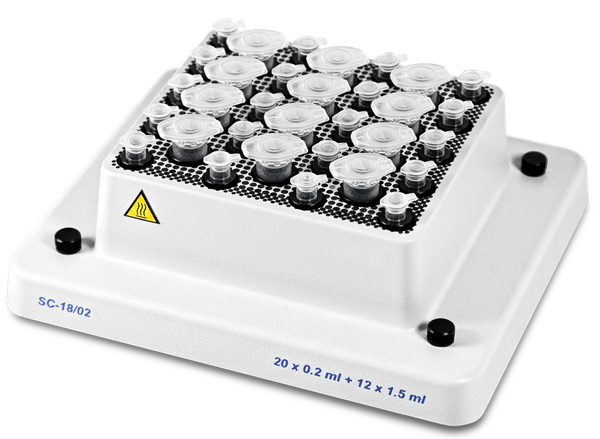

BS-010143-CK	SC-18/02C | Block for 20 x 0.2 mL and 12 x 1.5 mL microcentrifuge tubes

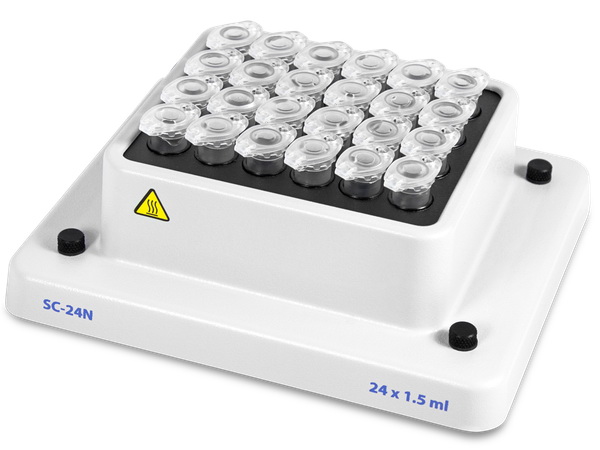

BS-010143-GK	SC-24NC | Block for 24 x 1.5 ml microcentrifuge tubes

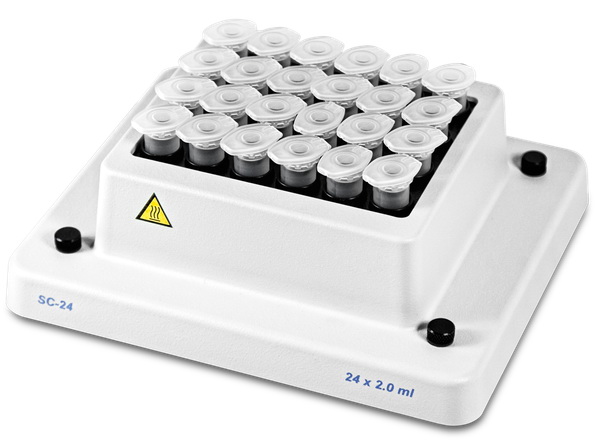

BS-010143-EK	SC-24C | Block for 24 x 2.0 mL microcentrifuge tubes

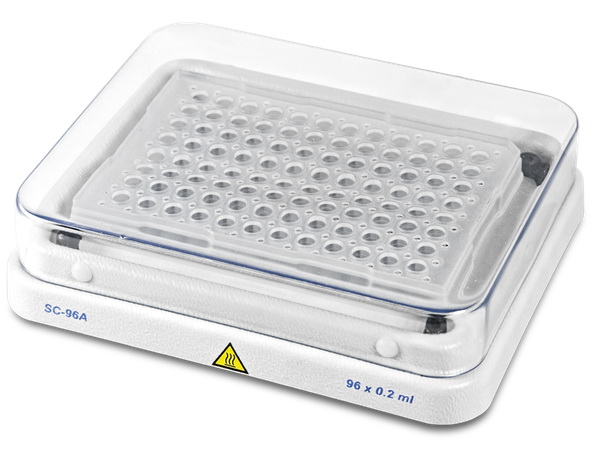

BS-010143-FK	SC-96AC | Block with lid for 96 x 0.2 mL well PCR plates (unskirted or half-skirted) or 8 x 12 0.2 mL tube strips

Specifications

Manufacturer	Biosan
Model number	TS-100C Smart
Display	2 line LCD
Speed	Variable from 250 rpm to 1,400 rpm
Shaking orbit	2 mm
Temperature setting range	+4ºC to +100°C
Temperature control range	15ºC below ambient to +100°C
Temperature resolution	0.1ºC
Temperature stability	±0.1°C
Temperature accuracy at +37°C	±0.5°C
Average heating speed	From +25°C to +100°C: 5ºC/min
Average cooling speed	From +100°C to +25°C: 5ºC/min From +25ºC to +4°C: 1.8°C/min
Temperature uniformity across the block at +4°C	±0.6°C
Temperature uniformity across the block at +37°C	±0.1°C
Temperature uniformity across the block at +100°C	±0.3°C
Temperature calibration coefficient range	0.936 to 1.063 (±0.063)
Timer	1 minute to 96 hours (1 minute increments)
Maximum continuous operating time	168 hours
Weight	3.7 Kg
Dimensions (W x D x H)	220 mm x 240 mm x 90 mm
Power supply	Input: 100 - 240 VAC: 50/60 Hz | Output: 12 VDC
