1710130 | D-130 high speed homogeniser with 8000 rpm - 30000 rpm speed range and processing capacity from 0.1 mL - 250 mL

Key Features

• Ideal for mixing, emulsification, shredding or chopping
• Wide processing range from 0.1 mL - 250 mL depending upon the probe (please see options below)
• Lightweight for easy hand-held operation
• Autoclavable stainless steel probe shafts
• Probes are easily dismantled for cleaning
• High speed motor with speed range from 8,000 rpm to 30,000 rpm

Description

The D-130 homogeniser is lightweight so it is ideal for hand-held processing of small samples in volumes from 0.1 mL - 250 mL (based on use in water) and depending upon the size of the probe that is used. A speed range from 8000 rpm - 30000 rpm provides sufficient power for a wide range of sample types.

A number of stainless steel probes with different volume capacities are available for the D-130. These probes are chemically-resistant, autoclavable and can be easily dismantled for cleaning. A stand can be purchased for use with the D-130 during lengthy homogenisations.

Purchasing Options

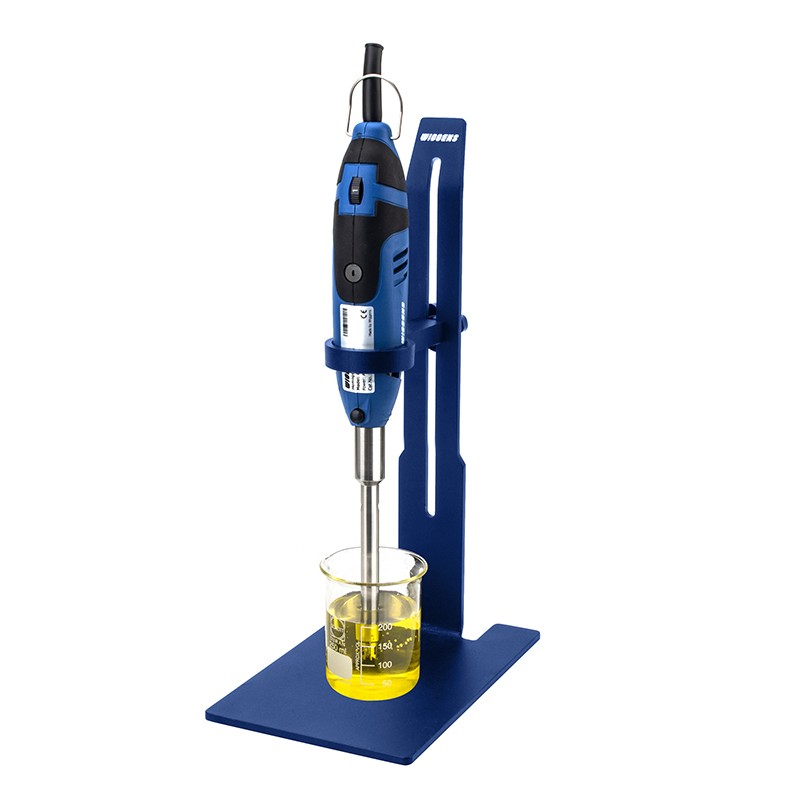

The D-130 homogeniser motor can be purchased separately or in a package with a stainless steel probe and a support stand as shown in the image below (beaker not included).

Part Number	Description

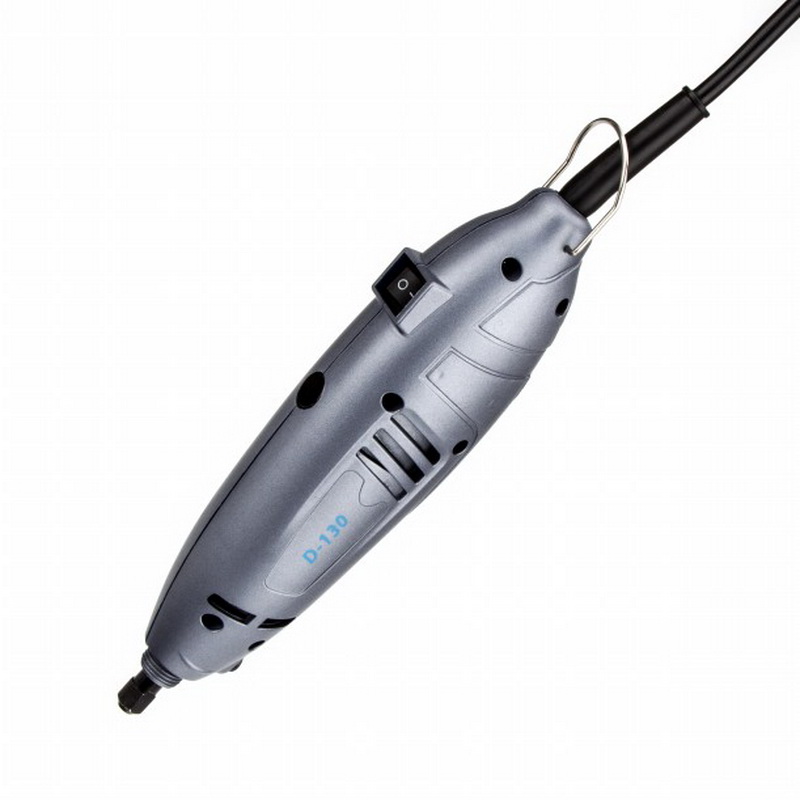

1710130	D-130 high speed homogeniser motor only
1710130-P1	D-130 high speed homogeniser motor, support stand and DS-130/5 probe
1710130-P2	D-130 high speed homogeniser motor, support stand and DS-130/7 probe
1710130-P3	D-130 high speed homogeniser motor, support stand and DS-130/10 probe
1710130-P4	D-130 high speed homogeniser motor, support stand and DS-130/14 probe

Package Items

Part Number	Item Description
Probes
DS-130/5	Probe for D-130 high speed homogeniser | length: 90 mm | Rotor diameter: 5 mm | Processing range: 0.1 mL - 50 mL

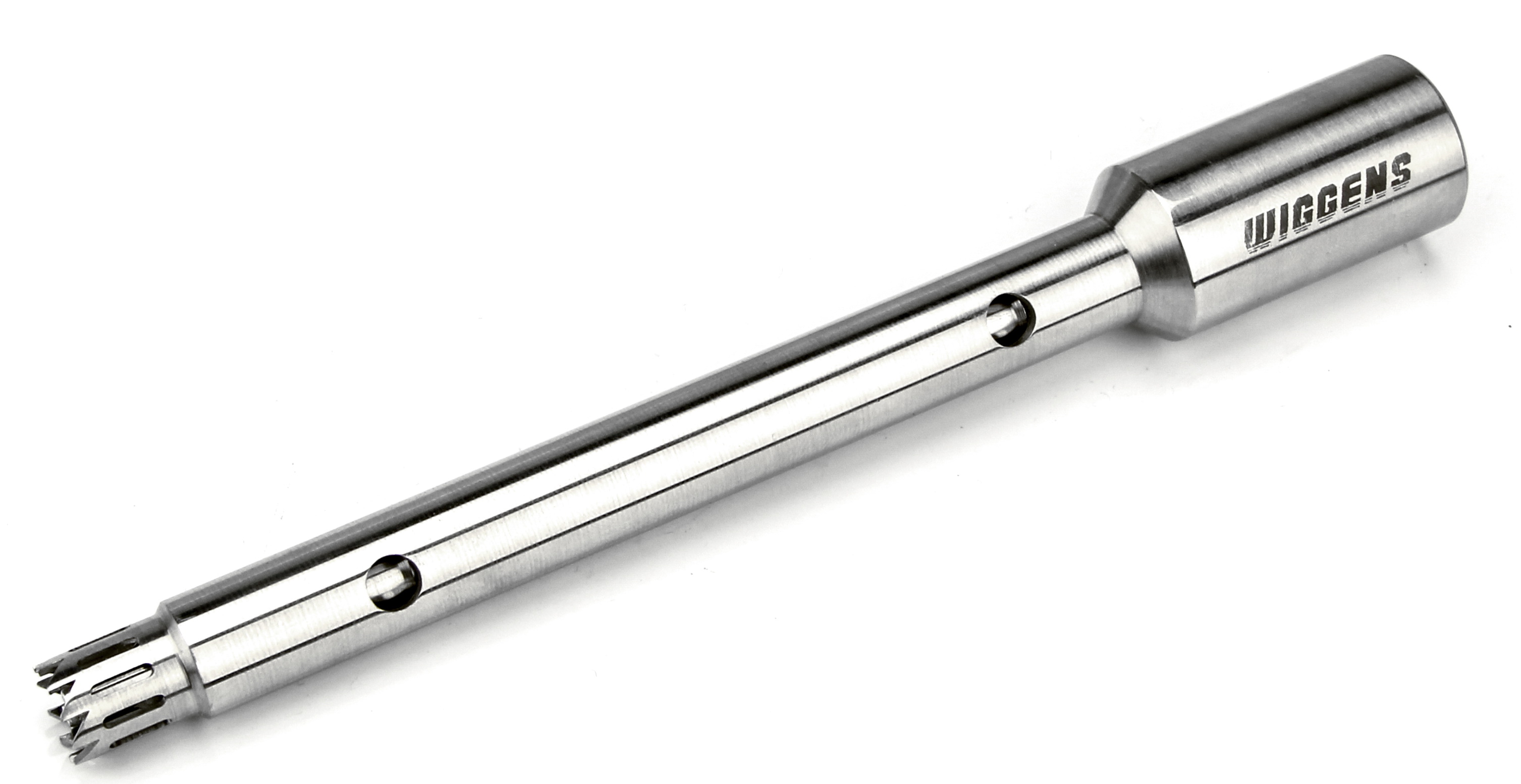

DS-130/7	Probe for D-130 high speed homogeniser | length: 160 mm | Rotor diameter: 7 mm | Processing range: 0.3 mL - 50 mL
DS-130/10	Probe for D-130 high speed homogeniser | length: 150 mm | Rotor diameter: 10 mm | Processing range: 1 mL - 250 mL
DS-130/14	Probe for D-130 high speed  homogeniser | length: 170 mm | Rotor diameter: 14 mm | Processing range: 2 mL - 250 mL
Support Stands
1710130-01	Support stand for D-130 high speed homogeniser

Specifications

Manufacturer	Wiggens
Model number	D-130
Speed (with zero load)	8000 - 30000 rpm
Processing range (with water)	0.1 mL - 250 mL (depends on probe)
Input/output power (W)	130
Probe material	316L stainless steel
Motor weight	1 Kg
