MU-D01 | Digital peristaltic pump with maximum flow rate of 1.14 L/min

Key Features:

• Digital microprocessor for precise speed control
• Compact size and handle for portability
• Compatible with a wide range of sizes of silicon tubing
• Uses high quality Easy-Load pump heads

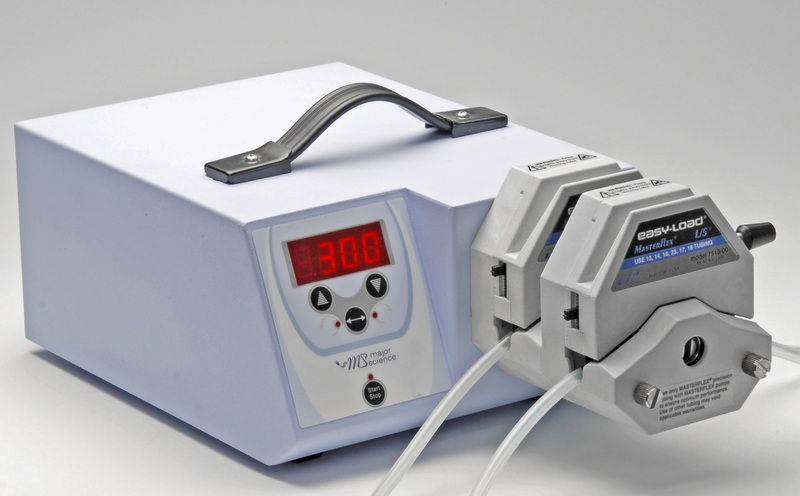

• Operates with one or two peristaltic pump heads
• Reversible for purging purposes
• Flow rate ranging from 1.2 mL to 1.14 L/min depending upon tubing diameter

Description

The MU-D01 peristaltic pump from Major Science is ideal for a variety of laboratory applications including filtration, circulation, sampling, chemical spraying, dispensing, transferring, feeding and filling. The easy-to-use pump head design accommodates a wide range of silicon tubing diameters to adjust the range of pump flow rates. Pump direction is reversible for purging purposes.

The digital microprocessor in the MU-D01 provides highly accurate speed control and the brushless motor reduces noise and increases instrument longevity. The MU-D01 can be used with either one or two pump heads.

Ordering Information for 2nd Pump Head

Part Number	Description
MU-PU1	Easy Load Pump Head for MU-D01

Specifications

Manufacturer	Major Science
Model number	MU-D01
Controller	Digital microprocessor
Motor	Brushless
Power	50 W
Pump speed/increment	20 rpm - 300 rpm/ 1 rpm
Maximum pump speed	300 rpm
Variable flow rate	1.2 mL - 1.14 L/min depending upon tubing diameter
Timer	99 Hr:59 min:59 sec
Number of rollers	3
Number of peristaltic pumps	1 or 2
Operating temperature	Ambient to 40ºC
Dimensions (W x D x H)	200 mm x 340 mm x 130 mm
Construction	Painted iron metal
Weight	5.7 Kg
Voltage	240 V
