BS-010410-CA4 | Dry block heater and cooler with multiple block options (CH-100)

Key Features

• Excellent alternative to ice buckets
• Peltier control of temperature range from -10°C to +100°C
• Aluminium block options for 0.5 mL, 1.5 mL or 2 mL microcentrifuge tubes
• LCD temperature display
• Touch pad control
• Lid to provide operator protection and increased temperature stability

Description

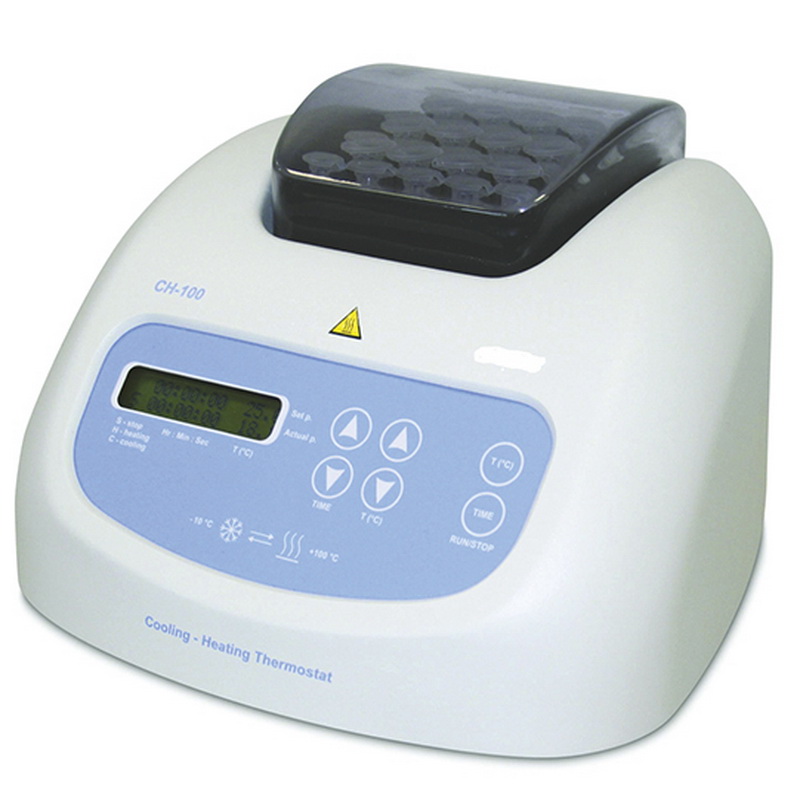

The BioSan CH-100 dry block heater and cooler is an ideal alternative to ice buckets for keeping samples and reagents cool while on the lab bench. The instrument can be configured with one of three different aluminium block options (please see below).

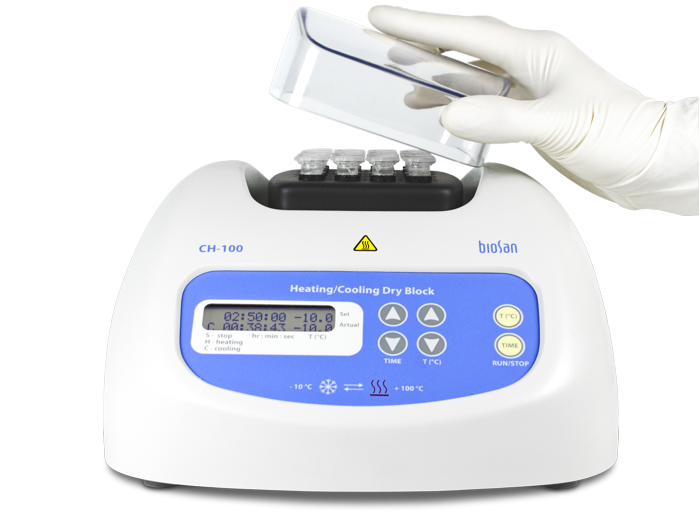

The heating/cooling range for the CH-100 is from -10°C to +100°C and the current and set temperatures are shown on an LCD display. The lid of the dry block bath can be closed to provide operator protection from hot blocks and to increase temperature stability. The unit is controlled through a touch pad.

Heating and cooling times to reach specific temperatures are as follows:

From +25°C to +37°C	3 minutes
From +25°C to +100°C	16 minutes
From +25°C to -10°C	21 minutes
From +100°C to -10°C	28 minutes

Block options

The following versions of the CH-100 are available with the listed blocks below:

BS-010410-BA4	CH-100 with block for 20 x 0.5 mL and 12 x 1.5 mL microtubes
BS-010410-CA4	CH-100 with block for 20 x 1.5 mL microtubes
BS-010410-UA4	CH-100 with block for 20 x 2 mL microtubes

Specifications

Manufacturer	BioSan
Model number	CH-100
Temperature setting range	-10°C  to +100°C
Temperature setting resolution	0.1°C
Temperature control range	30°C below ambient to +100°C
Temperature stability	±0.1°C
Temperature uniformity at 37°C	±0.1°C
Timer range	1 minute to 96 hours in increments of 1 minute or continuous
Block options	Three (please see above)
Instrument dimensions (W x D x H)	240 mm x 260 mm x 165 mm
Display	LCD
Weight	3.2 Kg
Power requirements	Input: 100 - 240 VAC 50/60 Hz | Output: 12 VDC
