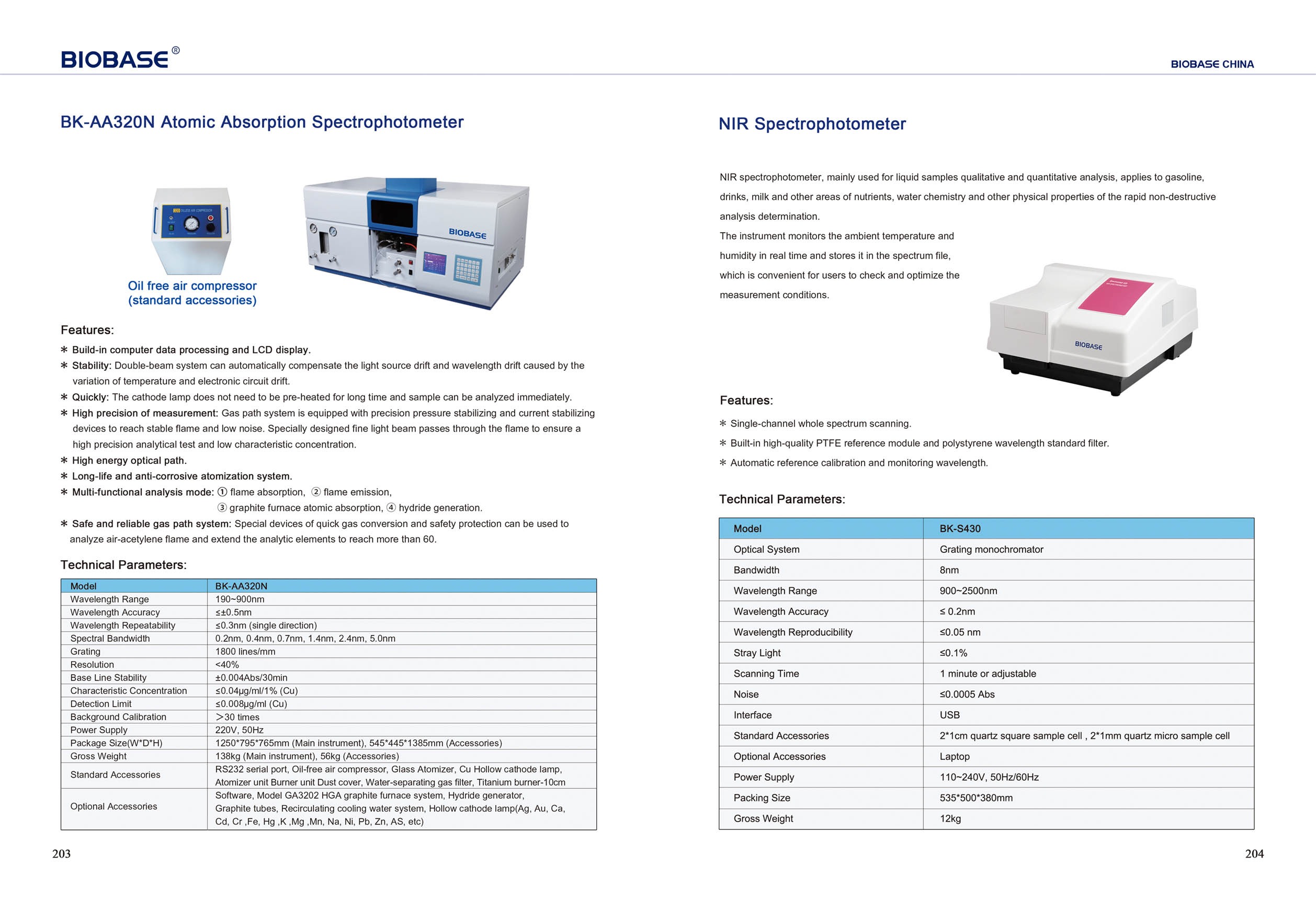

BK-AA320N | Dual-beam atomic absorption spectrophotometer

Key Features

• High energy optical path
• Long-life and anti-corrosive atomisation system
• Built-in computer data processing and LCD display.
• Double-beam system automatically compensates the light source drift and wavelength drift caused by the variation of temperature and electronic circuit drift
• Cathode lamp does not need to be pre-heated for long time so sample can be analyzed immediately
• Gas path system is equipped with precision pressure stabilising and current stabilising devices to reach stable flame and low noise. Specially designed fine light beam passes through the flame to ensure a high precision analytical test and low characteristic concentration.
• Multi-functional analysis mode:  Flame absorption | Flame emission | Graphite furnace atomic absorption | Hydride generation
• Safe and reliable gas path system: Special devices of quick gas conversion and safety protection can be used to analyze air-acetylene flame as well as nitrous oxide-acetylene flame and extend the analytic elements to reach more than 60.

Product Description

Optional Accessories

The following optional accessories are available for the BK-AA320N:

• Model GA3202 HGA graphite furnace system
• Hydride generator
• Graphite tubes
• Recirculating cooling water system
• Hollow cathode lamp (Ag, Au, Ca, Cd, Cr ,Fe, Hg ,K, AU, Mg, Mn, Na, Ni, Pb, Zn, Sb, etc.)

Specifications

Model number	BK-AA320N
Wavelength range	190 nm - 900 nm
Wavelength accuracy	≤±0.5 nm
Wavelength repeatability	≤ 0.3nm (single direction)
Spectral bandwidth	0.2 nm, 0.4 nm, 0.7 nm, 1.4 nm, 2.4 nm, 5.0 nm
Grating	1800 lines/mm
Resolution	<40%
Baseline stability	±0.004 Abs/30 min
Characteristic concentration	≤ 0.04μg/ml/1% (Cu)
Detection limit	≤0.008μg/ml (Cu)
Background calibration	＞30 times
Electrical requirements	220V | 50/60Hz
Dimensions	1250 mm x 795 mm x 765 mm (main instrument) 545 mm x 445 mm x 1385 mm (accessories)
Weight	138 Kg (main instrument) 56 Kg (accessories)

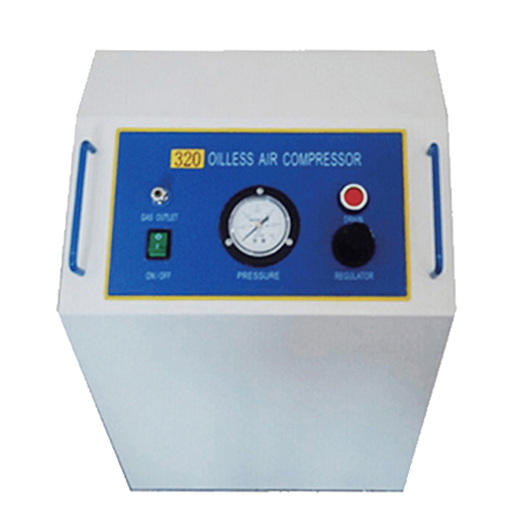

Standard accessories	RS232 serial port Oil-free air compressor Glass atomizer Cu hollow cathode lamp Atomizer unit Burner unit Dust cover Water-separating gas filter Titanium burner (10 cm)
