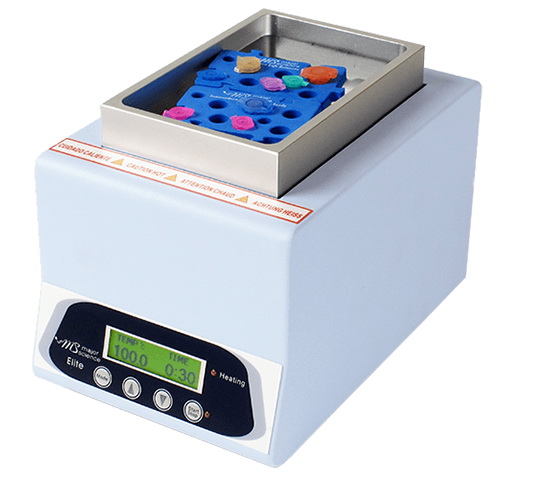

EL-02 | Elite dry block incubator with multiple sample block options (two block version)

Key Features

• The EL-02 can be used as a dry block heater, water bath or bead bath incubator
• LCD screen for operating parameter observation
• Highly precise temperature control over broad temperature range
• Leak-proof molded aluminum alloy heating chamber coated with PTFE
• End-user temperature calibration
• Safety features include over-temperature protection and SSR failure protection
• Wide range of user-interchangeable blocks available (please see below)
• Blocks include a block lifter and thermometer well
• Optional PC control software available

Description

The Elite Dry block incubator is designed for a variety of applications including restriction digest, DNA denaturation, melting agar, coagulation studies, hybridisation and hot start thermocycler reactions. It can be used as a dry block heater, a water bath, or a bead bath incubator.

The Elite Dry features a leak-proof molded aluminum alloy heating chamber coated with PTFE and a digital microprocessor controller provides highly precise temperature control over a broad temperature range from 5°C above ambient to 150°C.

A large LCD screen displays operating parameters and the unit includes safety features that provide protection against over-temperature and solid state relay failure. Optional PC control software allows the dry bath incubator to perform real time data recording through a PC.

A range of block options offers flexibility to labs with multiple tube and plate applications (please see options below). These precision-machined aluminium alloy blocks allow for highly efficient heat transfer to samples. Each block has a block lifter well to assist in removing blocks from the instrument as well as a thermometer well.

Block Options

The following user-interchangeable blocks are available for the EL-02:

Part Number	Description

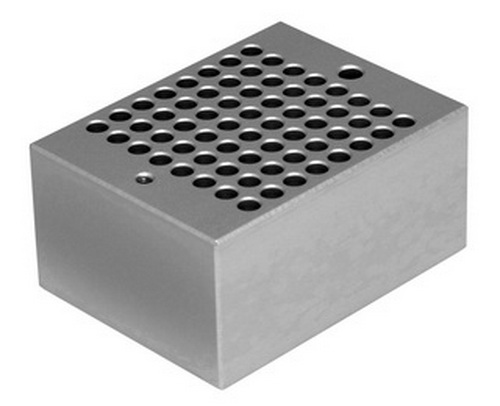

MD-B0.2	Block with 64 wells for 0.2 mL PCR tubes or 8 x 8 PCR tube strips
MD-B0.5	Block with 20 wells for 0.5 mL tubes

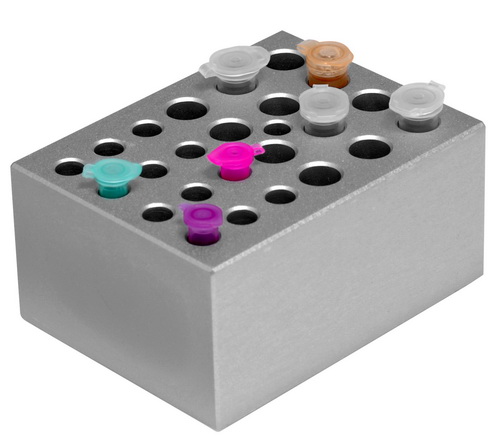

MD-B0.5plus1.5	Block with 12 wells for 0.5 mL tubes and 12 wells for 1.5 mL tubes

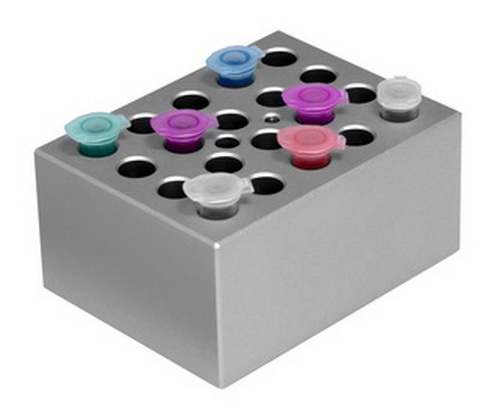

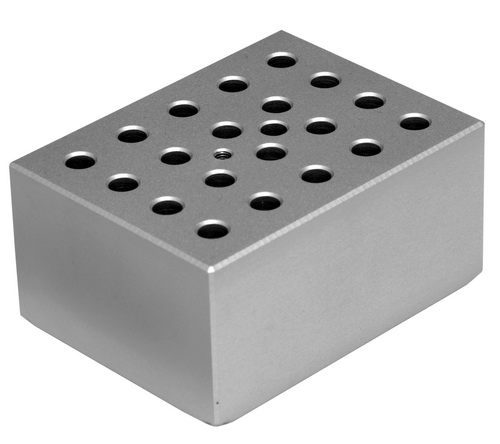

MD-B0.5/1.5	Block with 20 wells for 0.5 mL tubes on one side and 20 wells for 1.5 or 2 mL tubes on the other side

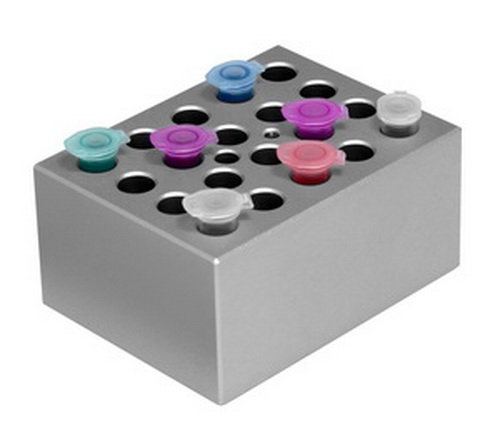

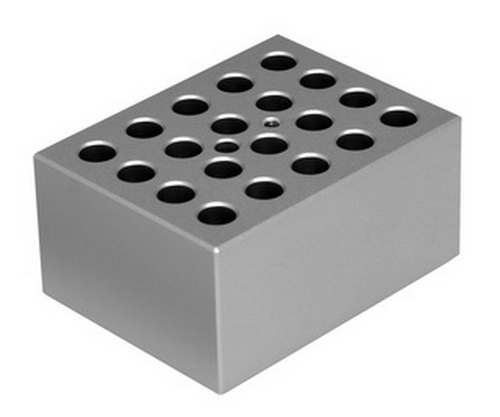

MD-B1.5	Block with 20 wells for 1.5 or 2 mL tubes
MD-B1.5V	Block with 20 wells for 1.5 mL V-shaped tubes only

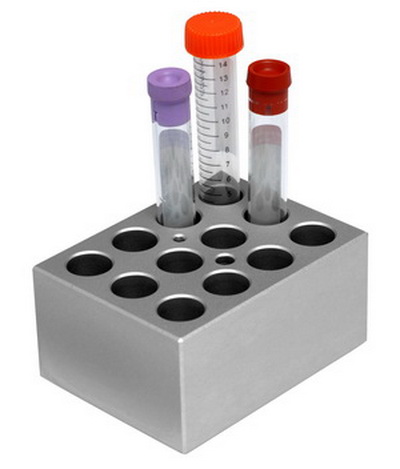

MD-B17	Block with 12 wells for 15 mL tubes

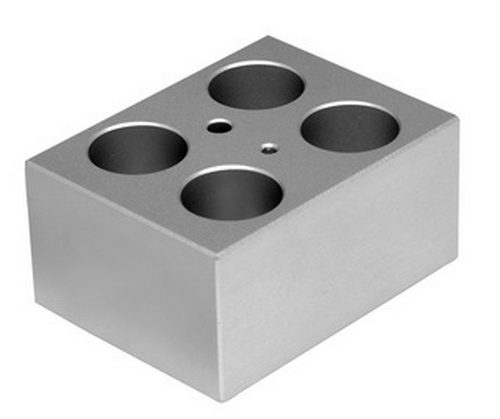

MD-B29	Block with 4 wells for 50 mL tubes
MD-B13	Block with 20 wells | Well diameter: 13 mm

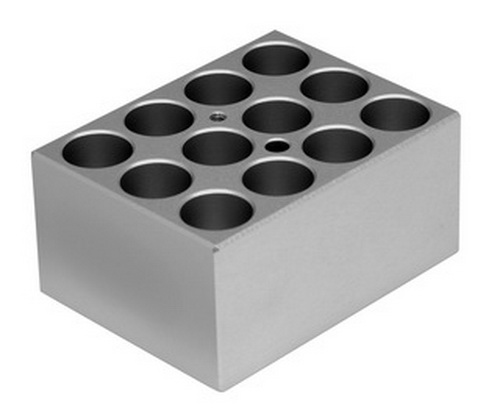

MD-B20	Block with 12 wells | Well diameter: 20 mm

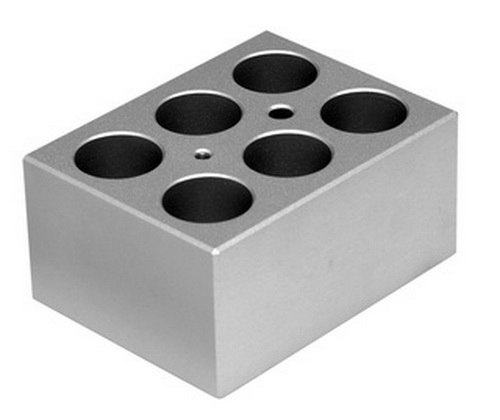

MD-B25	Block with 6 wells | Well diameter: 25 mm

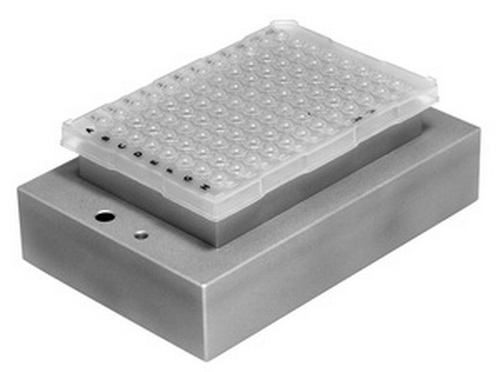

MD-MP02-D	Block for 96 well deep well microplate or 96 well PCR plate

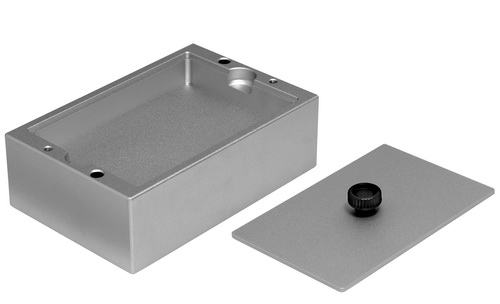

MD-MP01-D	Block for 96 well standard SBS microplate (with lid)
MD-BD02	Block for using beads with the dry block heater
MS-BL95	Screw-in block lifter | Length: 9.5 cm
MD-PCSW-R	Functional control software package with RS232 cable

Specifications

Manufacturer	Major Science
Model number	EL-02
Number of blocks	Two
Controller	Digital microprocessor control
Heating chamber	Molded waterproof aluminium alloy coated with PTFE
Display	LCD
Temperature control range	5°C above ambient to 150°C
Temperature increments	0.1°C
Temperature uniformity at 37°C	±0.2°C
Temperature accuracy at 37°C	±0.2°C
Temperature calibration	Yes
Timer	0 - 99 hr:59 min or continuous
Operating temperature	Ambient to 40°C
Instrument Dimensions	152 mm x 230 mm x 135 mm
Heating chamber dimensions	79 mm x 104 mm x 50 mm
Weight	2.8 Kg
Power	200 W
Electrical requirements	230 V: 50 Hz
PC connection	RS232
