MT-108 | Horizontal gel electrophoresis system for up to 25 samples

Key Features

• Less agarose and running buffer consumption
• Easy sample loading and multichannel pipette-compatible
• Transparent molded tank and transparent lid
• Ventilated lid for increased safety
• High temperature capability
• Indicators for gel making and running (black well-visualization strip and migration distance index line)
• No tapes, clamps or springs needed for gel casting
• Cast three agarose gels at a time
• Two tray option available

Description

The MT-108 horizontal gel electrophoresis system from Major Science offers many advantages for nucleic acid separation. Agarose gels are convenient to cast and samples are easy to load and the MT-108's longer tray allows larger fragments to be run to attain higher resolution.

The moulded design of the MT-108 prevents cracks and leakages and the Polycarbonate construction allows it be used at temperatures up to 130°C. The safety interlock cover is designed to prevent electrical hazards during electrophoresis.

The MT-108 is ideal for applications including Northern and Southern blotting, cosmid library restriction analysis, STS screening, microsatellite analysis, PCR fragment analysis, RFLP analysis, DNA finger-printing and high throughput analysis.

Electrophoresis Power Supplies

If you need an electrophoresis power supply to go with your electrophoresis tank then please click here.

More Information

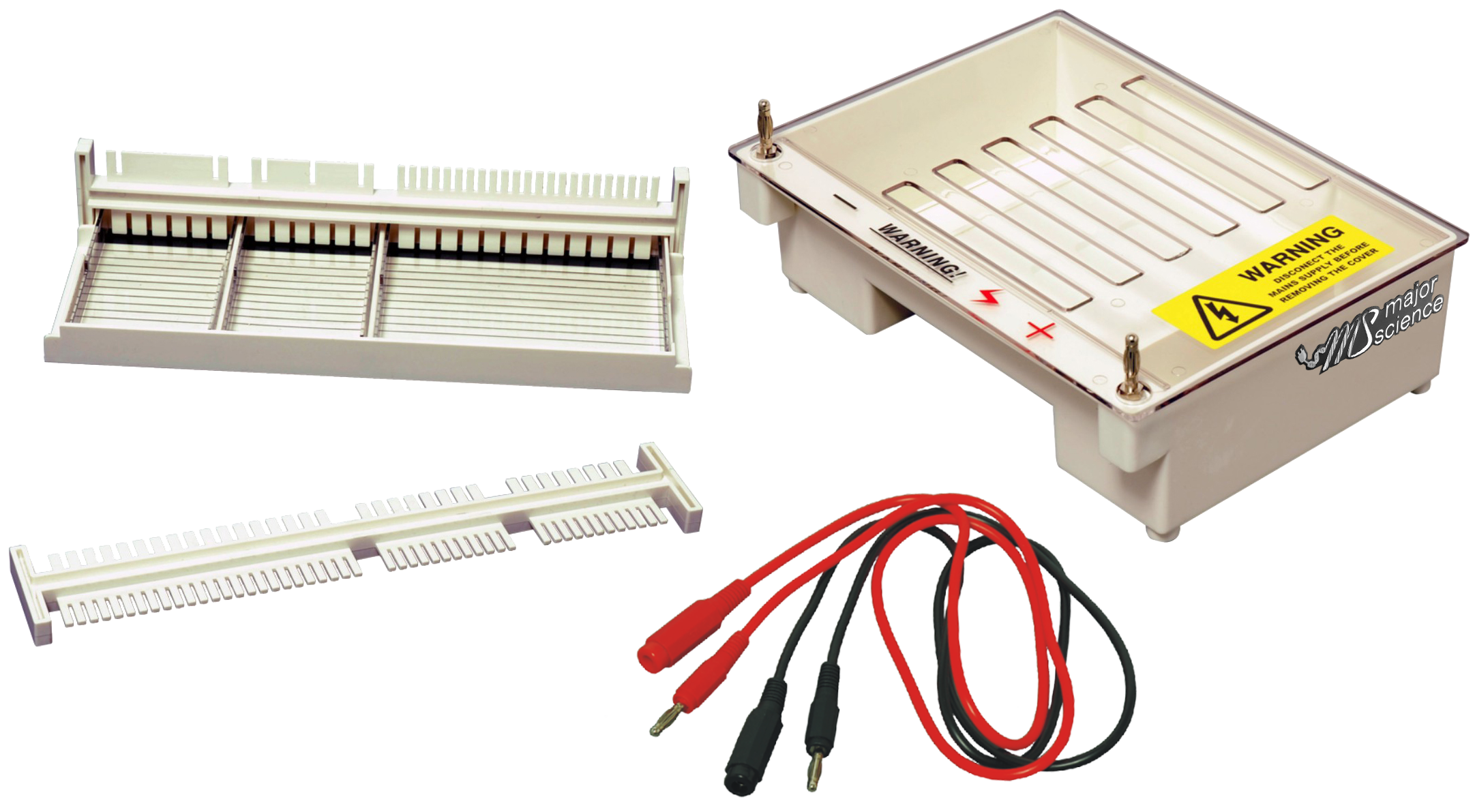

The MT-108 is offered as a complete system for the end-user to cast gels and run electrophoresis. The system includes:

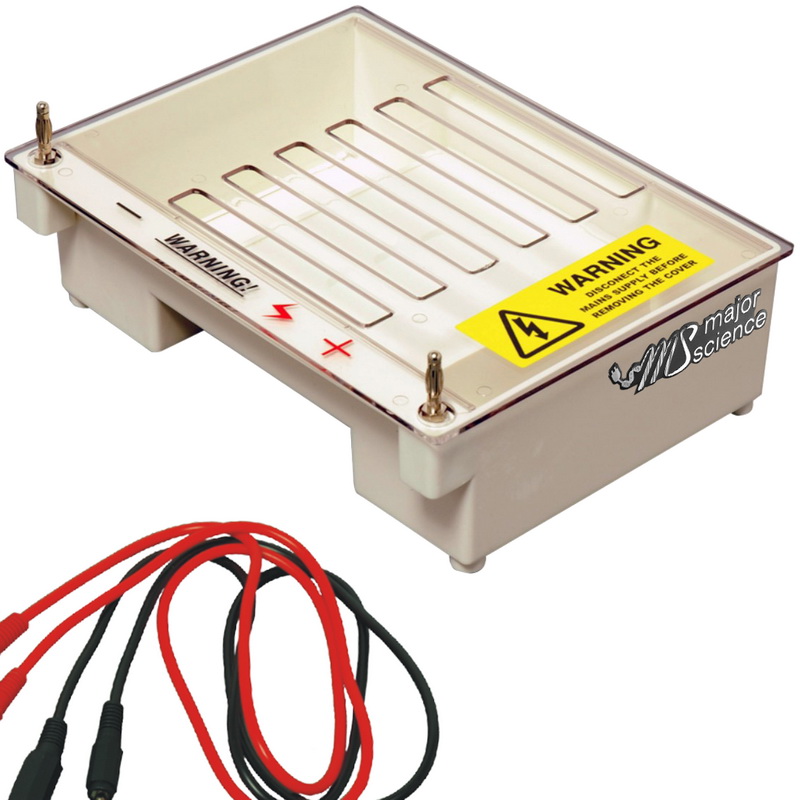

• 1 x snow tank and transparent lid
• 1 x MT-G01 | gel maker stand
• 1 x MT-T01 | 105 mm x 83 mm tray
• 2 x MT-T02 | 50 mm x 83 mm tray
• 1 x MJ-C01 | double-sided comb (2 x 8 teeth: 1 x 17 teeth: 2 x 12 teeth: 1 x 25 teeth)
• 1 x Black & red electrophoresis cable

Specifications

Manufacturer	Major Science
Catalog Number	MT-108
Appearance	Snow tank and transparent  lid
Tank  material	Polycarbonate
Lid material	Acetonitrile-styrene copolymer
Temperature capacity	Up to 130ºC
Gel Dimensions (W x L)	50 mm x 83 mm | 105 mm x 83 mm
Agarose level	5 mm
Maximum gel thickness	10 mm
Maximum number of samples	25
Buffer volume	400 mL
Operating temperature	4ºC - 40ºC
Dimensions (W x L x H)	136 mm x 188 mm x 58 mm
Weight	0.7 Kg
