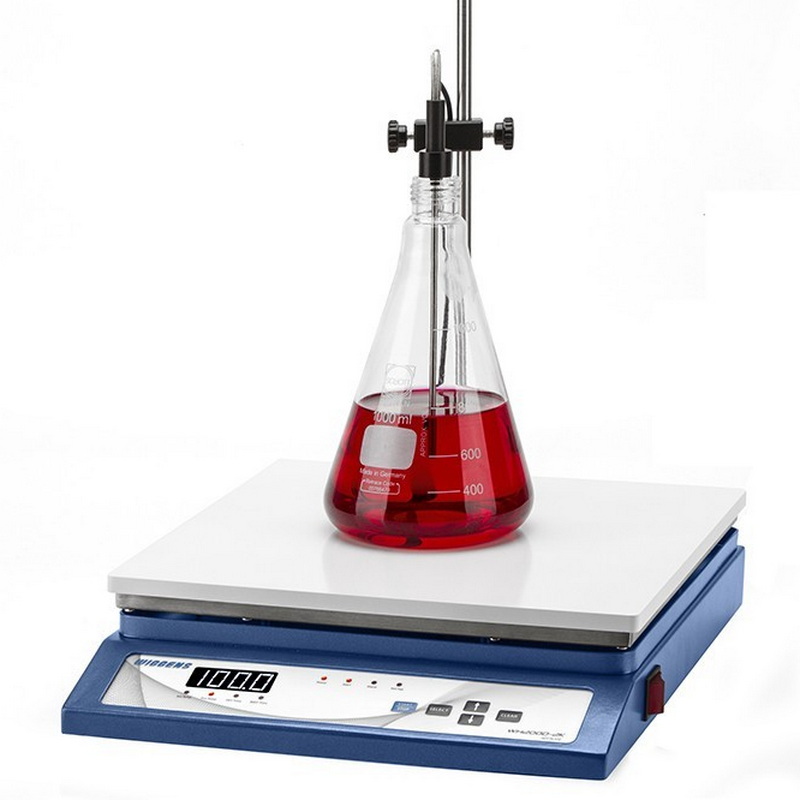

400112.01 | Hot plate with advanced PID temperature control and PT100 temperature sensor (WH200D-3K)

Key Features

• PID temperature control technology for accurate & reliable results
• Suitable for complicated temperature control requirements
• Bright LED screen displays set value & actual temperature
• Convenient temperature setting via on-touch control
• Timer function for automatic heating up to 100 hours
• Alarm signal output which can be applied to stop the operation of the hot plate and other connected devices
• External PT100 temperature sensor connection for direct and precise control of the actual temperature (PT100 sensor included with purchase)

Description

The Wiggens WH200D-3K digital hot plate features advanced PID technology to ensure accurate and reliable temperature control. It has an LED display and an alarm system that can stop the operation of the hot plate and connected devices. The hot plate is constructed of aluminium coated with ceramic for easy cleaning.

The unit features on-touch control of temperature setting and a timer function for automatic heating for up to 100 hours. The WH200D-3K has the capacity to meet complicated temperature control requirements and the PT100 temperature sensor that is included with the purchase of the WH200D-3K can be integrated with the unit to provide direct and precise control of actual temperature.

More Information

The following items are included with the purchase of the WH200D-3K:

Part Number	Product Description
400112	WH200D-3K digital hot plate
PT100-01	PT100 temperature sensor (Type 1) Length: 170 mm Diameter: 4 mm Material: Stainless steel Operating range: -30 to +300°C
PT100-05	Holder and clamp for PT100 temperature sensor

Optional Accessories

Part Number	Product Description
PT100-02	PT100 temperature sensor, Type II Length: 300 mm Material: Stainless steel Operating range: -30 to ~+300°C
PT100-03	PT100 temperature sensor, Type III Length: 170 mm Material: Stainless steel, PTFE-coated Operating range: -30 to ~+250°C
PT100-04	PT100 temperature sensor, Type IV Length: 300 mm Material: Stainless steel, PTFE coated Operating range: -30 to ~+250°C
PT100-06	PT100 temperature Sensor, Type VI Length: 250 mm Diameter: 4 mm Material: Glass Temperature range: -30ºC ~+300°C

Specifications

Manufacturer	Wiggens
Model No.	WH200D-3K
Display mode	LED
Hot plate material	Aluminium coated with ceramic
Timer function	Up to 100 hours
Temperature stability	±2ºC
Hot plate temperature	50ºC - 300ºC
Power	1500 W
Hotplate dimensions (W x L)	400 mm x 300 mm
Instrument dimensions (W x L x H)	470 mm x 410 mm x 70 mm
