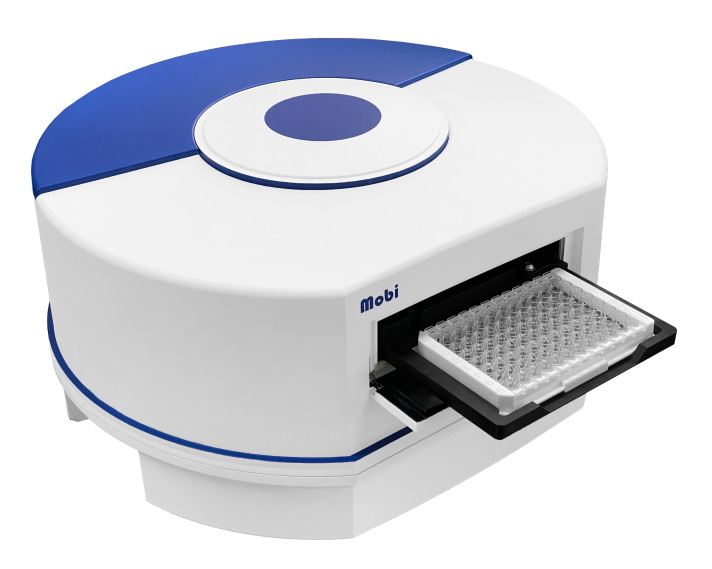

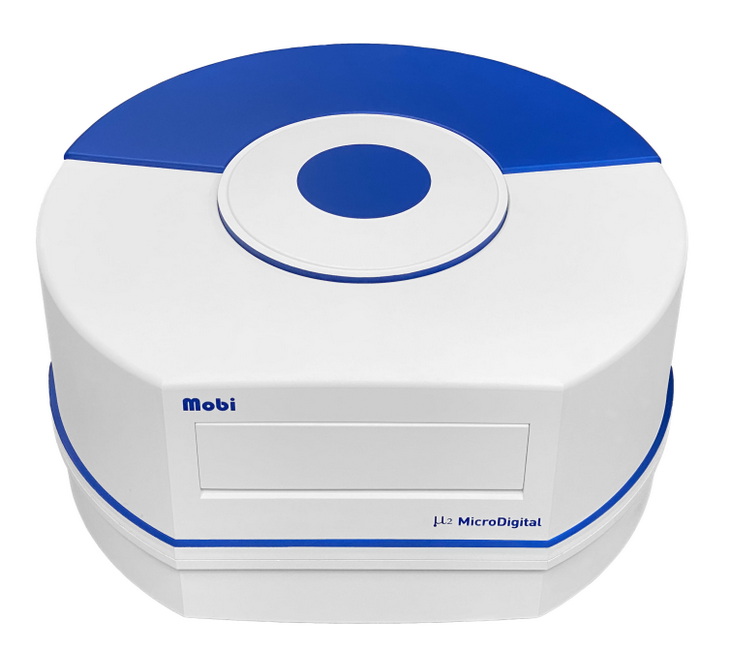

Mobi | UV/Vis scanning spectrophotometer for 6- to 384-well microplates

Key Features

• Monochromator with selectable wavelengths in 1 nm increments from 200 nm to 999 nm
• Compatible with microplates ranging from 6 to 384 wells
• Supports end-point, kinetic, spectral scanning, and well-area scanning measurements
• Integrated detector and electronics ensure low-noise measurements
• Equipped with a Xenon flash lamp to extend operating time

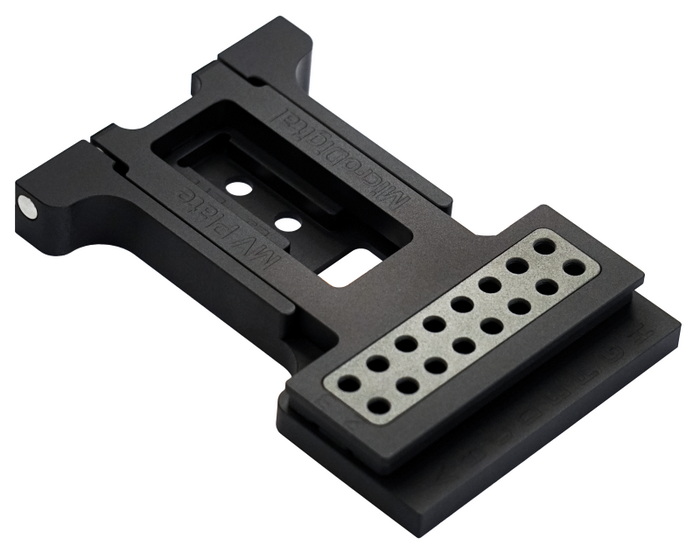

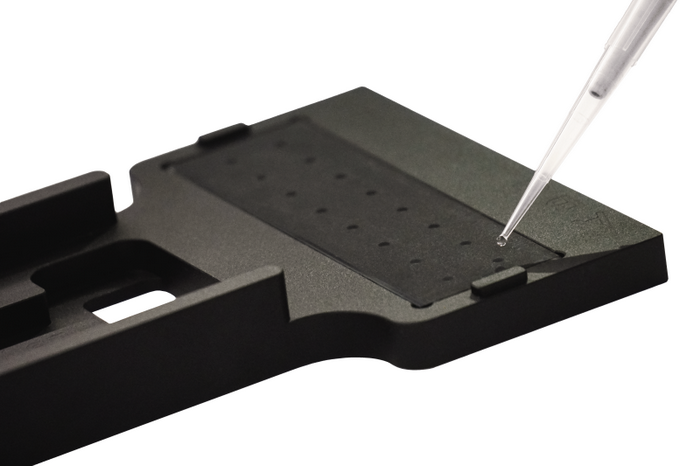

• Options available for 2 μL and 16 μL microvolume plates for nucleic acid quantification
• Optional incubation and shaking features

Product Description

The MOBI UV/VIS scanning spectrophotometer measures light absorbance during biochemical reactions to allow for accurate concentration analysis of samples using microplates. Key applications include:

• Nucleic acid quantification
• Protein quantification
• Purity measurements (260/280 and 260/230 ratios)
• ELISA
• Enzyme kinetics
• Cell proliferation
• Microvolume analysis

The Mobi is compatible with microplates ranging from 6 to 384 wells and its monochromator (with 5nm bandwidth) features selectable wavelengths from 200 nm to 999 nm in 1 nm increments. The Mobi can be used for end-point, kinetic, spectral scanning, and well-area scanning measurements.

The Mobi uses a xenon flash lamp light source and a photodiode detector and the integrated detector and electronics ensure low-noise levels during measurements.

Options include temperature control and shaking, and a microvolume plate.

More Information

Specifications

Detection modes	Absorbance
Reading methods	Supports end-point, kinetic, spectral scanning, and well-area scanning measurements
Microplate types	6- to 384-well microplates
Light source	Xenon Flash Lamp
Detector	Photodiode
Wavelength selection	Monochromator
Wavelength range	200 nm - 999 nm (1 nm increments)
Monochromator bandwidth	5 nm
Dynamic range	0 - 4.0 OD
Resolution	0.0001 OD
Wavelength accuracy	±1.0 nm
Wavelength repeatability	±0.1 nm
Pathlength correction	Available
OD accuracy	±1% at 2.0 OD: 3% at 3.0 OD
OD repeatability	±1% at 2.0 OD
OD linearity	±1% from 0 to 3.0 OD
Incubator (Optional)	Temperature control and shaking
Microvolume plate (Optional)	2 µL, 16 plate
Power	100 - 240 VAC: 50/60㎐
Dimensions	396 nm x 364 nm x 207 nm
Weight	9 Kg
