167600 | Oil-free piston vacuum pump | maximum vacuum 100 mbar | maximum flow rate 60 L/min (V600)
Key Features
- Compact and lightweight with handle for convenient transportation
- Maintenance-free
- Oil-free design reduces environmental impact
- Moisture trap and particle filter on air intake to protect motor
- Low noise and vibration
- Manual vacuum regulator and gauge for vacuum monitoring
- Overheating protection device shuts off pump automatically
- Large range of accessories (please see below)
Description

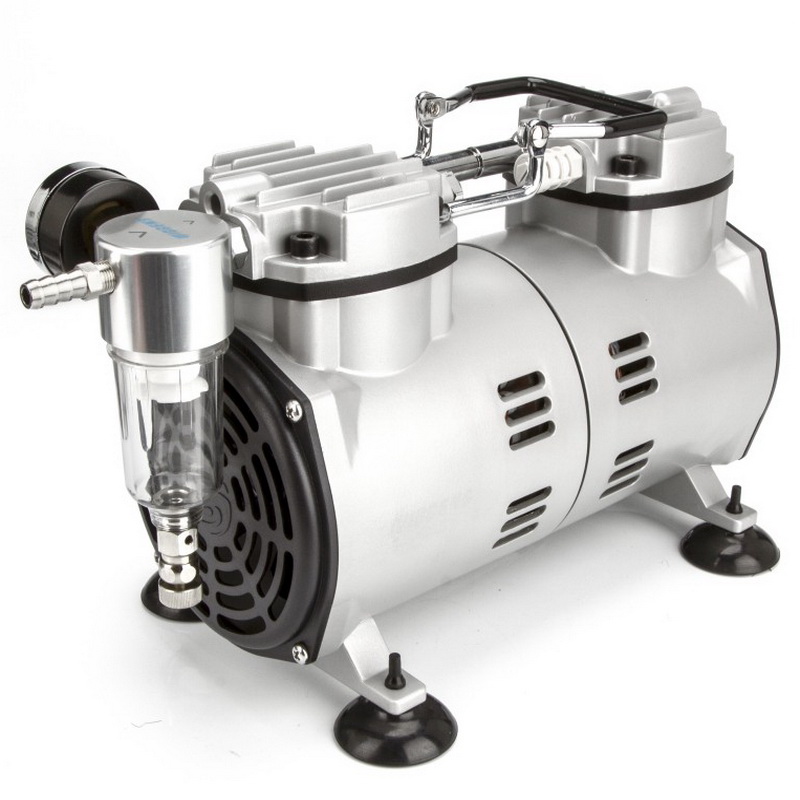

The V600 from Wiggens is a compact, lightweight and mobile oil-free piston vacuum pump. It features manual vacuum control and a gauge for vacuum monitoring. The pump is maintenance-free and its oil-free design reduces its environmental impact. Incorporated into the unit are a moisture trap and a particle filter on the air intake to protect the motor.
Included with the purchase of the pump is a vacuum regulator/filter system that comprises a vacuum gauge, filter, filter cartridge, bottom water drain valve and vacuum regulation valve to allow for vacuum monitoring and control.
The pump can achieve flow rates of up to 60 L/min (3.6 m³/hour) and a maximum vacuum down to 100 mbar.
Optional Accessories
| Part Number | Description |
| 167200-41 | Foot pedal |
| 167600-42 | Silencer |
| 167300-20 | Connector | Outlet diameter: 9.5 mm |
| 167300-21 | Connector | Outlet diameter: 8 mm |
| 167300-26 | Connector | Outlet diameter: 6.4 mm |
| 167300-23 | Connector | Outlet diameter: 4.8 mm |
| 167300-24 | Connector | Outlet diameter: 3.2 mm |
| 167300-25 | L-shape connector | Outlet diameter: 8 mm |
| 168100-12 | Quick connection outlet | Outlet diameter: 12 mm |
| 168100-10 | Quick connection outlet | Outlet diameter: 10 mm |
| 168100-8 | Quick connection outlet | Outlet diameter: 8 mm |
| 168100-6 | Quick connection outlet | Outlet diameter: 6 mm |
| 168100-4 | Quick connection outlet | Outlet diameter: 4 mm |
| 168020-01 | Silicon tubing | Outer diameter: 12 mm, Inner diameter: 6 mm, Thickness: 3 mm, Length: 1 m |
| 168021-01 | Silicon tubing | Outer diameter: 14 mm, Inner diameter: 8 mm, Thickness: 3 mm, Length: 1 m |
| 168022-01 | Silicon tubing | Outer diameter: 16 mm, Inner diameter: 10 mm, Thickness: 3 mm, Length: 1 m |
Specifications
| Manufacturer | Wiggens |
| Model number | V600 |
| Maximum vacuum (mbar) | 100 |
| Maximum flow rate (m³/hour) at atmospheric pressure
| 3.6 |
| Maximum flow rate (L/min) at atmospheric pressure | 60 |
| Hose connection (ID) | 9 mm |
| Motor speed (rpm) | 1450 |
| Dimensions (mm) | 340 x 155 x 195 |
| Weight (Kg) | 8.6 |
| Noise level (dB) | 52 |
| Power (W) | 190 |
| Current (A) | 1 |
| Electrical requirements | 220 V: 50 Hz |
