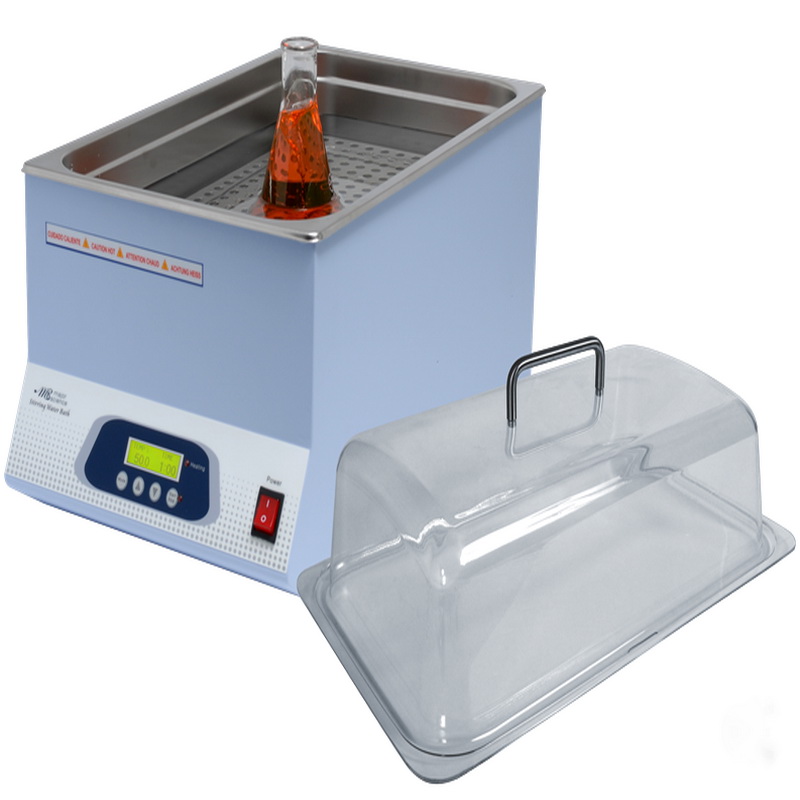

SWB-20L-1 | Stirring water bath with one built-in magnetic stirrer and polycarbonate lid, 20 L capacity

Key Features

• Microprocessor control for precise and accurate performance
• Built-in magnetic stirring mechanism ensures outstanding temperature uniformity
• Stirring speed control
• LCD screen shows temperature and time simultaneously
• User temperature calibration
• Warning indicator and automatic shut down to avoid overheating
• Clear concave polycarbonate lid directs condensation back into the bath
• Optional data logging software available

Description

This microprocessor-controlled stirring water bath from Major Science provides precise temperature control and excellent mixing performance for a wide range of laboratory applications. The built-in stirring mechanism not only provides outstanding temperature uniformity throughout the bath but also provides a stirring function for mixing samples.

Additional features of the stirring water bath include a variable stirring speed control and an LCD screen to display bath temperature and time simultaneously. The concave polycarbonate lid is designed to direct condensation back into the bath and a shutdown mechanism warns of overheating and automatically turns off the bath.

Optional data logging software (SWB-DLSW-R) is available for real time data recording through a PC.

Specifications

Manufacturer	Major Science
Model Number	SWB-20L-1
No. of stirring mechanisms	1
Stirring speed	400 - 1500 rpm (measured by percentage)
Bath volume	Up to 20 L
Maximum capacity	15 x 250 mL flasks: 8 x 500 mL flasks
Water circulation function	Yes
Display	LCD
Heating power	800 W
Controller	Digital microprocessor control
Bath temperature	5ºC above ambient to 99ºC
Temperature increment	0.1ºC
Temperature accuracy	±0.2ºC at 37ºC
Temperature calibration	Yes
Timer	0 - 99 hr:59 min or continuous
Safety device	Warning indication on screen with alarm and automatic shutdown
Operating temperature	Ambient to 40ºC
Bath inner dimensions (W x D x H)	300 mm x 500 mm x 150 mm
Overall dimensions (W x D x H)	330 mm x 540 mm x 240 mm (without polycarbonate lid)
Bath external material	Painted iron metal
Bath tank material	304 stainless steel
Lid material	Polycarbonate with stainless steel handle
Rear Drainage Port	Yes
Weight	14 Kg
Rated voltage	110 V/ 220 V
Communication port	RS232
