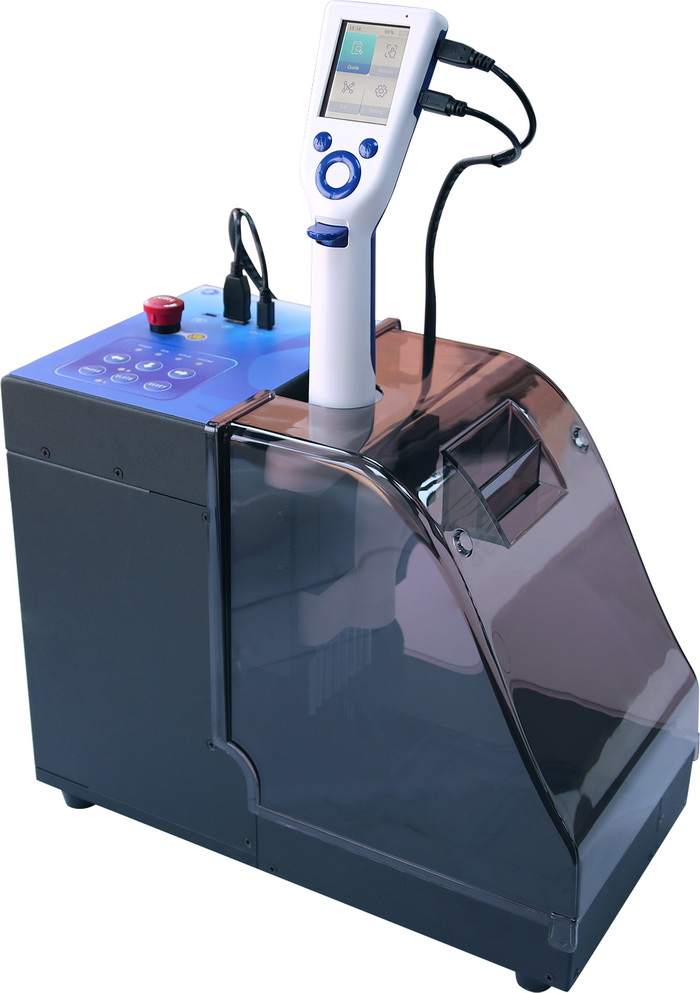

088.M0101.00C | Maelstrom 8 Autostage automated and portable nucleic acid extraction system

Key Features

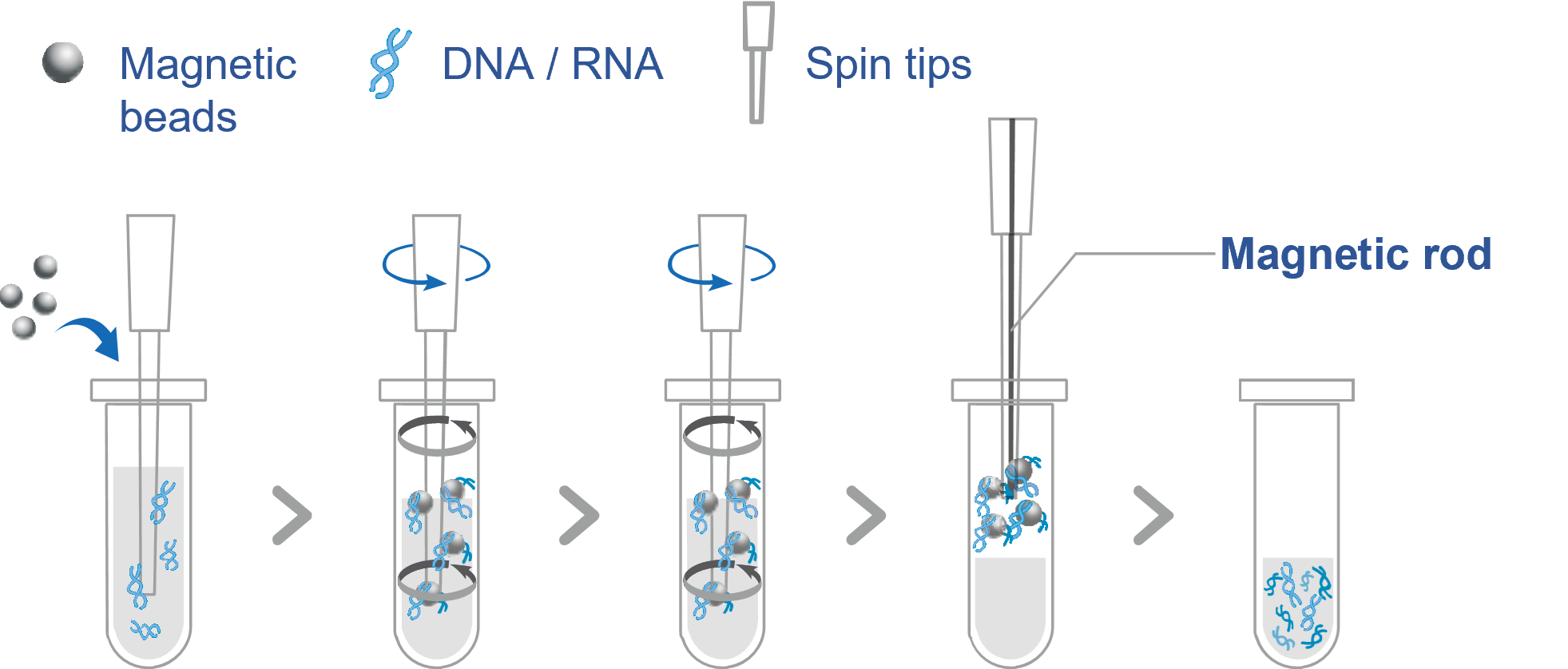

• Utilises patented whirl stirring mixing technology which significantly reduces cross-contamination of adjacent wells compared to other mixing technologies
• Fully automated to avoid human error and to ensure consistent quality
• Rotary mixer is light and battery-operated for remote field work
• Ideal for applications in molecular diagnostics and life sciences
• Extensive range of compatible magnetic bead-based reagent kits available (please see More Information below for details)
• Intuitive user interface and easy menu navigation
• Data exchange via USB connected with laptop
• CV of nucleic acid extraction concentration is <5%
• Processing volume of up to 1500 µL
• Spin tips stir magnetic beads at speeds up to 3000 rpm

Description

The Maelstrom™ 8 magnetic rotary mixer from TANBead provides a powerful and portable nucleic acid extraction system that can be used on the lab bench or remotely in the field. The instrument utilises specialised spin tips and 3000 Gauss magnetic rods to efficiently mix and collect magnetic beads to extract nucleic acid from an extensive range of sample types.

The Maelstrom™ 8 features a novel spin methodology rather than the vertical mixing technology used in other extraction systems. This approach significantly reduces the risk of cross-contamination between adjacent wells.

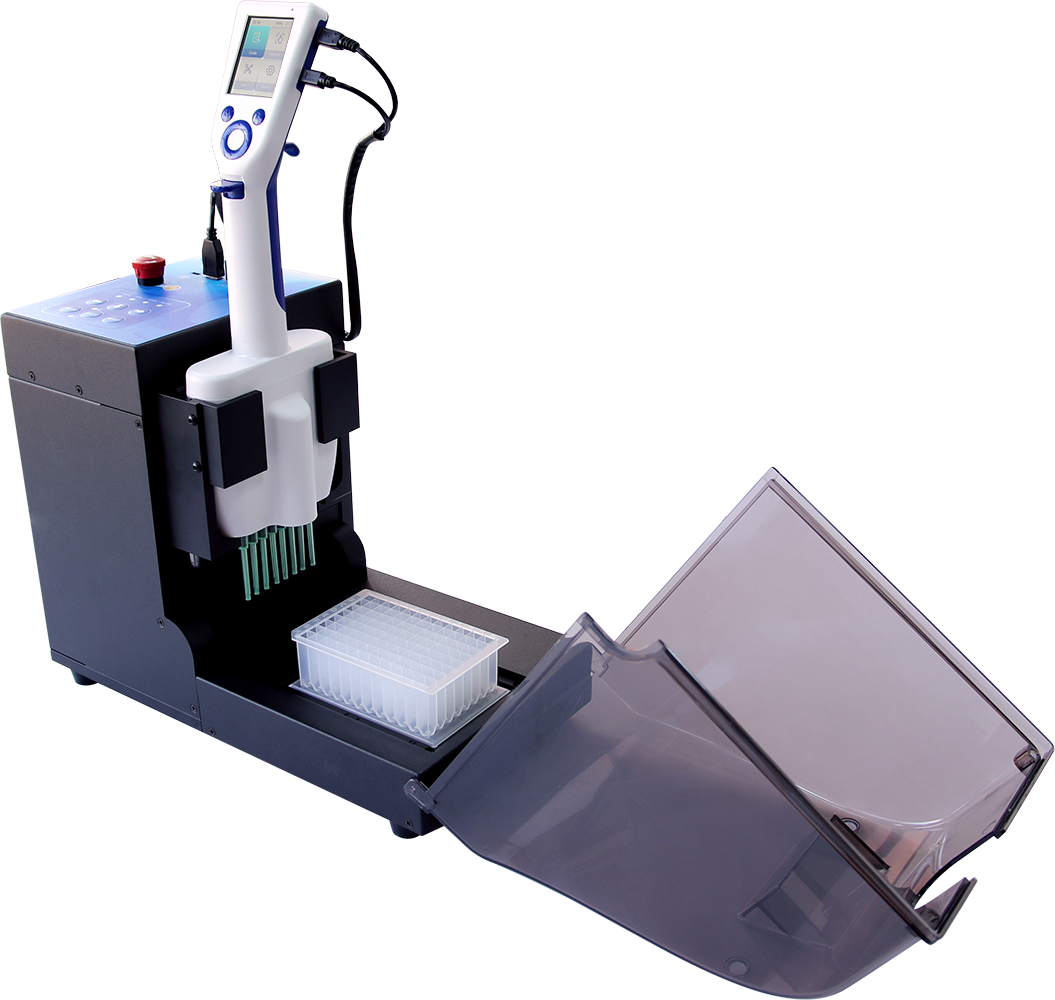

The Maelstrom™ 8 magnetic rotary mixer is lightweight and so can be used manually or combined with an Autostage to provide support for the mixer unit and to provide heating from RT to 110°C. Sample size can range from 50 µL to 1500 µL and eight samples can be processed at a time.

All phases of the extraction process (mixing, collection, pause and vapour modes) are programmable and up to 40 steps can be compiled into a single program. Up to 50 programs can be stored in the rotary mixer's memory.

More Information

Please click here to download a brochure describing the TANBead Maelstrom 8 fully automated nucleic acid extraction system. A brochure listing our range of compatible pathogen extraction kits and consumables can be downloaded here. Please click here to view a video of the Maelstrom 8 in operation.

Maelstrom products are FDA and CE approved.

Specifications

Maelstrom™ 8 magnetic rotary mixer
Run time	25 - 60 minutes
Samples per run	8
Weight	600 g
Dimensions (W x D x H)	112 mm x 63 mm x 327 mm
Power supply	5 V: 2 A
Battery	3.7 V: 2850 mAh
Charging plug	micro-USB
Processing volume	50 µL to 1500 µL
Magnetic rod	>3000 Gauss
Spin speed	Up to 3000 rpm
Display	60 mm LCD: 240 x 320 pixels
Autostage
Weight	9.6 Kg
Dimensions (W x D x H)	357 mm x 190 mm x 285 mm
Power supply	19 VAC: 120 W
Temperature control	1 set
Heating block	1
Heating	RT to 110°C
