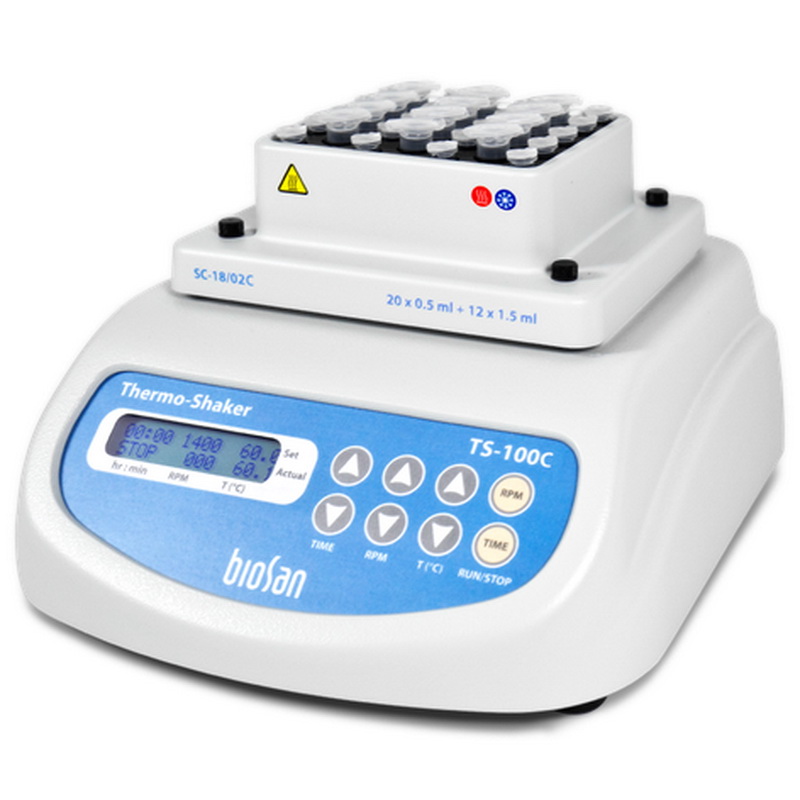

BS-010120-AA4 | Shaker and heater for microcentrifuge tubes and PCR plates (TS-100)

Features

• Ideal for 0.2 mL, 0.5 mL, 1.5 mL and 2.0 mL microcentrifuge tubes and 96 well PCR plates (unskirted or semi-skirted)
• Temperature control range from 5ºC above ambient up to 100°C
• Independent control of speed and temperature
• 2 mm orbital
• LCD display shows set and actual temperature as well as speed and time
• Can be used for heating or shaking or heating and shaking
• Shaking speed range from 250 rpm to 1400 rpm
• Temperature calibration function
• Timer sound signal

Description

The compact TS-100 thermo shaker is the ideal solution for the shaking, heating, or shaking and heating of microcentrifuge tubes or PCR plates. Temperature, speed and time are all microprocessor-controlled.

The TS-100 has a 2 mm orbital and shaking speed can be varied between 250 and 1400 rpm. Temperature can be regulated from 5°C above room temperature up to +100°C. A temperature calibration function allows the end-user to calibrate the TS-100 by approximately ±6% of the selected temperature to compensate for differences in the thermal behaviour of tubes from different manufacturers.

A complete system includes the thermo shaker base unit and one of the five different easily-interchangeable blocks that are available for the TS-100. Blocks are sold separately from the thermo shaker base unit.

Ordering Information

Part Number	Item Description
BS-010120-AA4	Thermo Shaker base unit
BS-010120-AK	SC-18 | Block for 20 x 0.5 mL and 12 x 1.5 mL microcentrifuge tubes
BS-010120-CK	SC-18/02 | Block for 20 x 0.2 mL and 12 x 1.5 mL microcentrifuge tubes
BS-010120-GK	SC-24N | Block for 24 x 1.5 ml microcentrifuge tubes
BS-010120-EK	SC-24 | Block for 24 x 2.0 mL microcentrifuge tubes
BS-010120-FK	SC-96A | Block with lid for 96 x 0.2 mL well PCR plates (unskirted or half-skirted) or 8 x 12 0.2 mL strips

Specifications

Manufacturer	Biosan
Model number	TS-100
Display	2 line LCD
Speed	Variable from 250 rpm to 1,400 rpm
Shaking orbit	2 mm
Temperature setting range	+25ºC to +100°C
Temperature control range	5ºC above ambient up to +100°C
Temperature resolution	0.1ºC
Temperature stability	±0.1°C
Temperature accuracy at +37°C	±0.5°C
Heating speed	From 25°C up to 37°C in 6 minutes | From 25°C to 100°C in 15 minutes
Temperature uniformity across the block at +37°C	±0.1°C
Temperature uniformity across the block at +100°C	±0.2°C
Temperature calibration coefficient range	0.936 to 1.063 (±0.063)
Timer	1 minute to 96 hours (1 minute increments)
Maximum continuous operating time	168 hours
Weight	3.7 Kg
Dimensions (W x D x H)	220 mm x 240 mm x 90 mm
Power supply	Input: 100 - 240 VAC: 50/60 Hz | Output: 12 VDC
