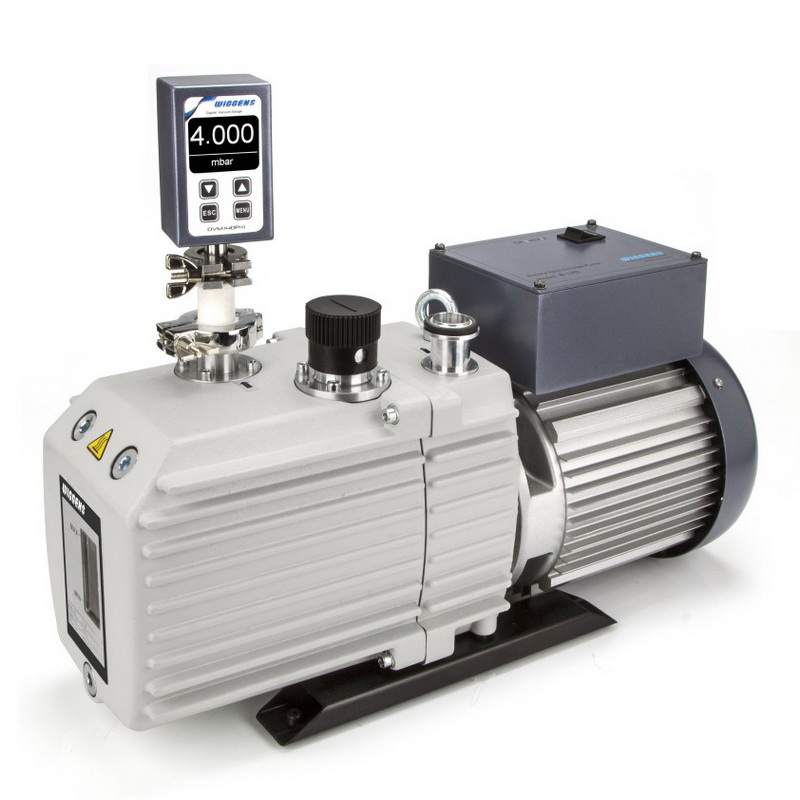

900035-22 | Rotary vane vacuum pump (R-36D), maximum flow rate 540 L/min (32.4 m³/hour)
Key Features
- Compact structure
- Very good sealing
- No returning throughput
- Oil-spout prevention
- Low noise
- Oil-observation window
- High flow rate
- Low and stable maximum vacuum
- High evaporation resistance
- Comparatively high chemical resistance
- Low maintenance rate
- Low oil mist
- Gas ballast valve
- Over-current protection
- Meets IP44 standards
Description
The Wiggens R-36D is a low noise, chemically-resistant rotary vane vacuum pump that offers a low and stable maximum vacuum of 4 x 10-4 mbar and high flow rates up to 540 L/min.
Specifications
| Manufacturer | Wiggens |
| Model number | R-36D |
| Number of stages | 2 |
| Flow rate (L/min) | 540 |
| Flow rate (m³/hour) | 32.4 |
| Ultimate vacuum (mbar) | 4 x 10-4 |
| Power (W) | 1100 |
| Motor rotation (rpm) | 1400 |
| Noise level (dB) | <56 |
| Oil capacity (L) | 2.1 |
| IP code | IP44 |
| Weight (Kg) | 39 |
| Inlet and outlet specifications | DN25KF |
