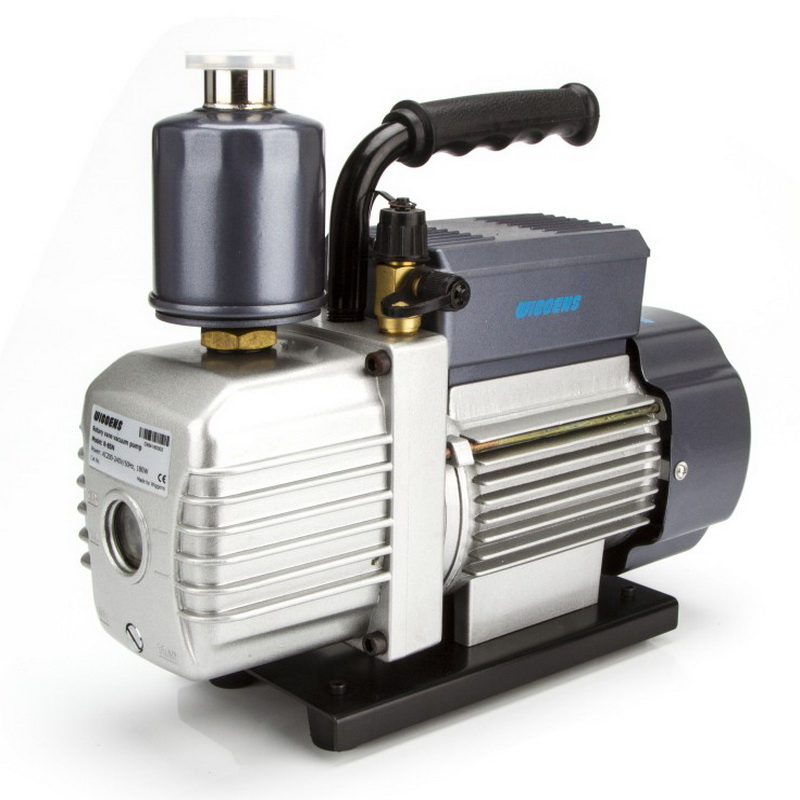

900101-22 | Rotary vane vacuum pump (R-4SN), maximum flow rate 50 L/min (3 m³/hour)
Key Features
- Compact structure
- Very good sealing
- No returning throughput
- Oil-spout prevention
- Low noise
- Oil-observation window
- Handle for easy transportation
- High flow rate
- Low and stable maximum vacuum
- High evaporation resistance
- High chemical resistance
- Low maintenance rate
- Low oil mist
- Gas ballast valve
- Over-current protection
- Meets IP40 standards
Description
The Wiggens R-4SN is a lightweight and mobile rotary vane vacuum pump that offers high flow rates up to 50 L/min and a low and stable maximum vacuum of 2.5 x 10-2 mbar.
Specifications
| Manufacturer | Wiggens |
| Model number | R-4SN |
| Number of stages | 1 |
| Flow rate (L/min) | 50 |
| Flow rate (m³/hour) | 3 |
| Maximum vacuum (mbar) | 2.5 x 10-2 |
| Power (W) | 180 |
| Motor rotation (rpm) | 1400 |
| Noise level (dB) | <60 |
| Oil capacity (L) | 0.25 |
| IP Code | IP40 |
| Weight (Kg) | 13.5 |
| Outlet specifications | 5/8" SAE Male: 7/16" SAE Male |
