W1100100 | Vdose Pro peristaltic pump with high precision stepper motor dispensing

Key Features

• High precision stepper motor ensures repeatability and accuracy of dispensing
• Icon-driven user interface allows for easy setup and operation
• Polarised backlit LCD display with chemically-resistant and wear-proof membrane keypad for instrument control
• Calibration screen allows for accurate and quick end-user calibration
• Low profile design reduces space required on the bench or in a hood
• Up to nine pump control protocols can be saved and recalled for multi-use environments
• Compatible with 2 mm, 3 mm, 6 mm and 8 mm tubing
• Variable delay time can be set between doses

Description

The Vdose Pro features a high precision stepper motor to ensure repeatability and accuracy during liquid dispensing. An icon-driven user interface allows for easy setup and operation. A polarised backlit LCD display with a chemically-resistant and wear-proof membrane keypad provides advanced instrument control as well as accurate and rapid end-user calibration.

The Vdose Pro is compatible with 2 mm, 3 mm, 6 mm and 8 mm tubing. Up to nine pump control protocols can be saved and recalled for multi-use environments.

Pump head options

The following pump head options are available for the Vdose Pro:

Part Number	Description
W1100101	Single pump head for 2.3 mm wall tubing (supplied as standard with Vdose Pro)
W1100201	Optional stacking pump head for 2.3 mm wall tubing
W1100102	Optional pump head for 1.6 mm wall tubing
W1100202	Optional stacking pump head for 1.6 mm wall tubing

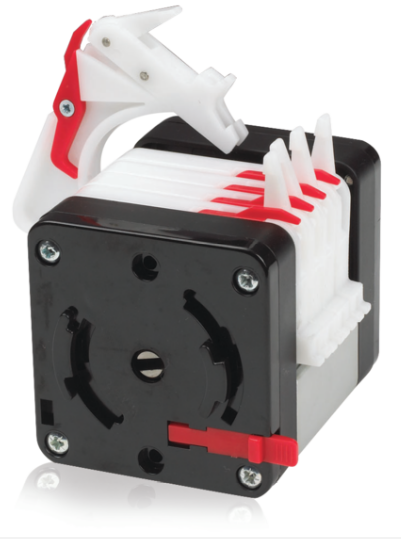

W1100203	Optional 5 channel microcassette pump head for small bore tubing dispensing of liquids into microwell plates or microcentrifuge tubes

Specifications

Manufacturer	Wiggens
Model number	Vdose Pro
Pump heads	Single pump head for 2.3 mm wall tubing included with purchase of the Vdose Pro (see other pump head options above)
Operating speeds	75 rpm and 150 rpm
Modes	Dispense mode
Direction	Clockwise
Compatible tubing sizes (ID: mm)	2, 3, 6 and 8
Dispense ranges for tubing	0.01 mL - 10 L
Flow rate for tubing (mL/min)	2 mm: 30 and 60 | 3 mm: 60 and 120 6 mm: 210 and 426 | 8 mm: 540 and 1080
Mid range accuracy	2 mm: ±1% | 3 mm: ±2% 6 mm: ±2% | 8 mm: ±2.5%
Delay time range between doses	0.5 s  - 100 s
Instrument dimensions (W x D x H)	223 mm x 330 mm x 178 mm
Weight	5.4 Kg
Electrical requirements	100 - 240 VAC: 50/60 Hz
