169214 | Chemically-resistant filtration system | maximum vacuum 13 mbar | maximum flow rate 25 L/min (VF214)

Key Features

• Compact and portable design
• Chemically-resistant vacuum pump
• Combines all necessary items for filtration including powerful oil-free vacuum pump and VF3 glass filtration set
• Easy maintenance
• Low noise level
• Vacuum gauge and manual vacuum pressure regulator

Description

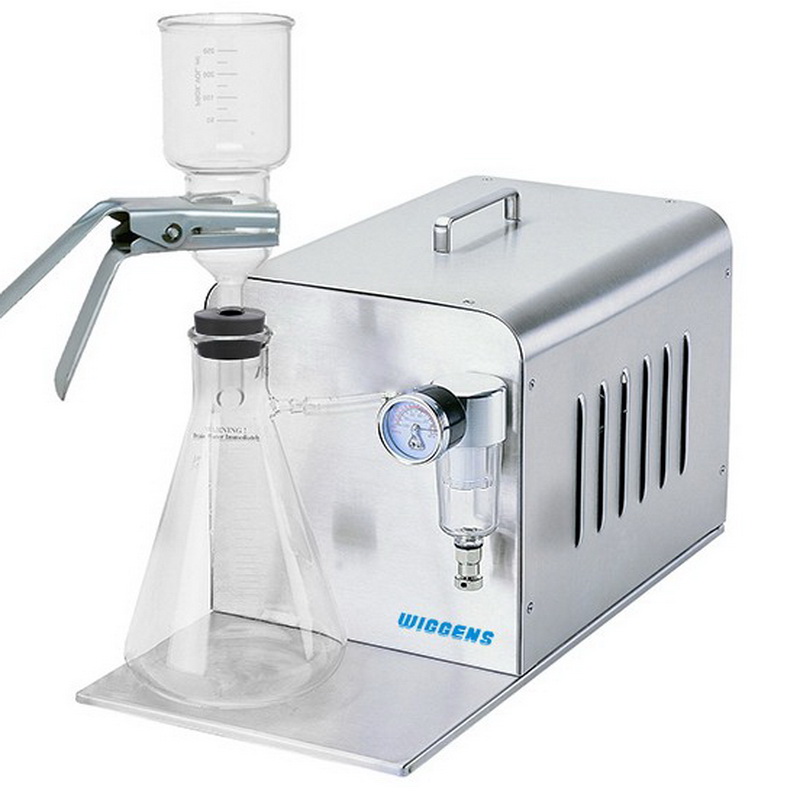

The compact and portable VF214 vacuum filtration system combines a powerful and chemically-resistant oil-free vacuum pump with the VF3 filtration glass set and a fibreglass filter membrane to provide an all-in-one system for applications such as suspended solids measurement.

The low noise pump is fitted with a vacuum gauge and a manual regulator for vacuum pressure control.

More Information

The following components are included with the purchase of the VF214 filtration system:

• Oil-free, chemically-resistant vacuum pump with vacuum gauge and manual vacuum pressure regulator
• VF3 filtration flask set with fiberglass filter membrane (47 mm diameter: 0.1 μm pore size)*
• High pressure-resistant tubing
• 0.2 μm water-blocking filter

* The VF3 filtration flask set consists of:

• 250 mL glass filter holder
• 250 mL glass funnel
• Aluminium magnesium alloy clamp
• Glass support base and cap with tube
• Silicone stopper
• 1000 mL receiver flask with ground glass joint

Specifications

Manufacturer	Wiggens
Model number	VF214
Power	95 W
Motor speed	1450 rpm
Maximum vacuum	13 mbar
Maximum flow rate	25 L/min
Ambient operating range	+5°C to +40°C
Humidity	Maximum relative humidity 80% for temperatures up to +31°C with linear decrease down to 50% relative humidity at a temperature of +40°C
Outlet connector	10 mm
Weight	8.3 Kg
Noise level	50 dB
Filtration glass set	VF3
